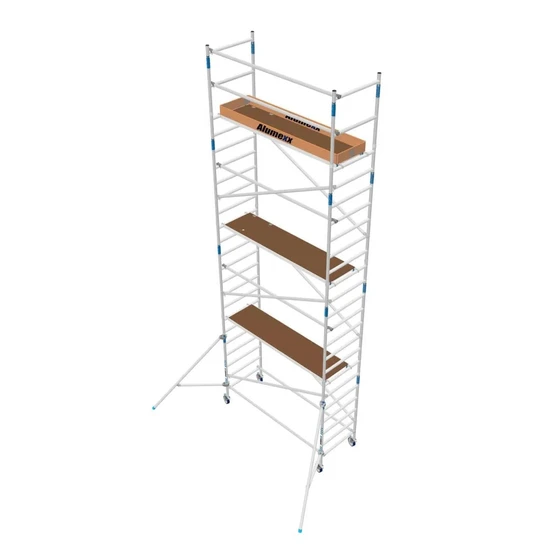

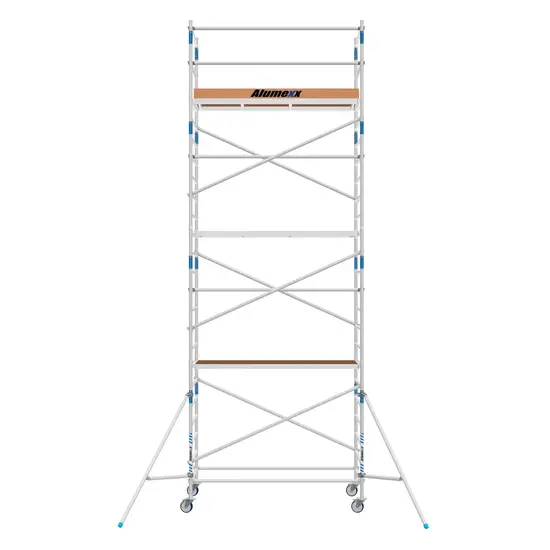

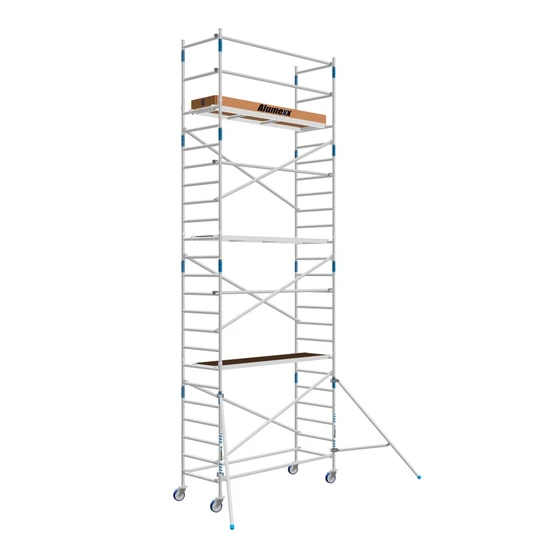

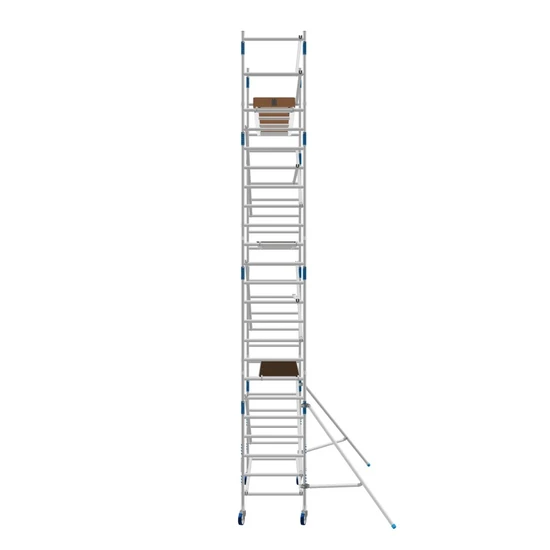

Alumexx mobile scaffold Basic 90x190 working height 8.2 m

The ASC Basic-Line rolling scaffold is specially designed for semi-professionals, hobbyists and do-it-yourselfers. The braces can be placed along the platform, therefore it is not necessary to rebuild the scaffold when moving the platforms. The Alumexx basic line rolling scaffold guarantees safe working thanks to easy assembly.

The Alumexx Basic rolling scaffold is suitable for indoor and outdoor use. The scaffold can be used freestanding or attached to the facade.

Mobile scaffold parts:

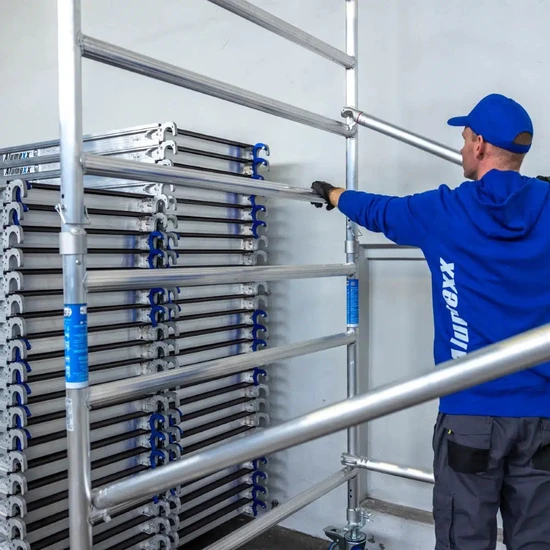

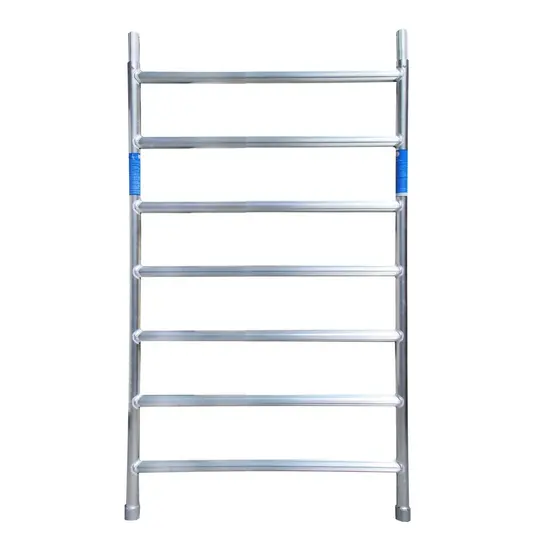

• 6x   Alumexx construction frame 90-7
• 2x   Alumexx handrail frame 90-2

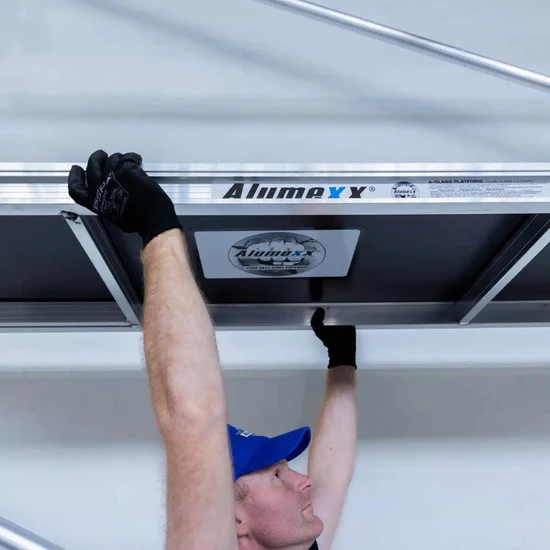

• 1x   Alumexx platform without hatch 190, wood

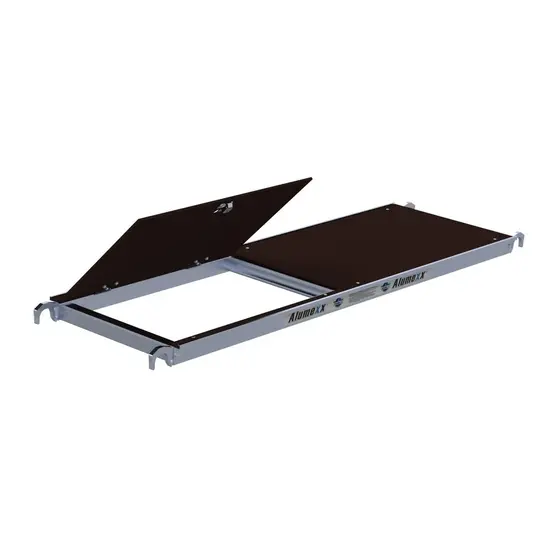

• 2x   Alumexx platform with hatch 190, wood
• 6x   Alumexx horizontal brace 190
• 6x   Alumexx diagonal brace 190

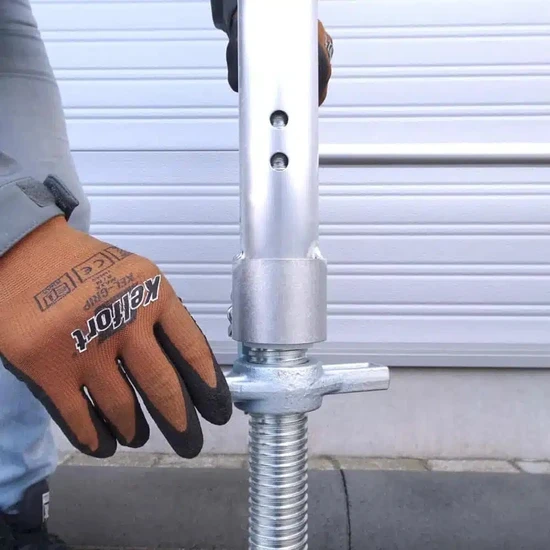

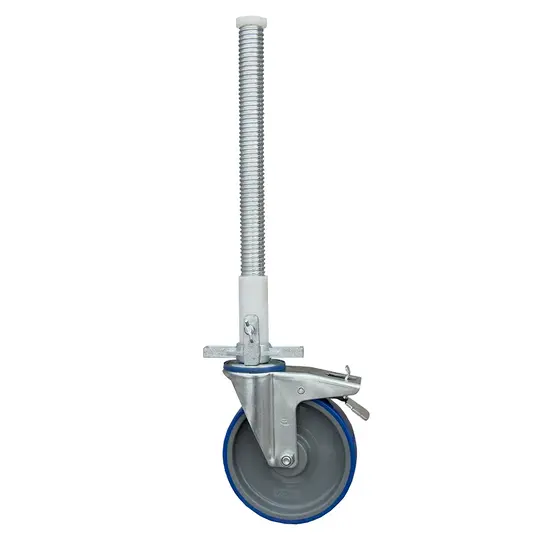

• 4x   Alumexx scaffold wheel 200 mm with steel spindle (height adjustable)
• 2x   Alumexx scaffold adjustable stabilizer
• 1x   Alumexx toe board set wood
• 12x Locking clip

Extra information

• This Alumexx basic-line tower can be extended to a maximum working height of 10.20 m.
• Made of high quality aluminum, tube diameter 50.8 mm.
• The horizontal rungs of the construction frames are equipped with an anti-slip profile.
• The platform is movable every 28 cm.
• Platform equipped with a wooden deck plate with anti-slip.
• Refer to the Alumexx mobile scaffolding manual for assembly instructions.
• All Alumexx mobile scaffold parts are available separately.

What does working height mean?

Working height is understood to mean the height at which you can work when standing on the platform. The formula used for this is platform height + 2 meters = working height. This is an indication and may differ slightly in practice, depending on your own body measurements.
