ASC fall protection sloped roof Class C set 21 m

ASC fall protection class C complete set length 21 meters.

Parts list:

• 8x ASC roof edge protection stanchion
• 7x ASC roof edge protection frame + safety net 3 m

(*) The number of parts in the photos may vary. The above parts list applies.

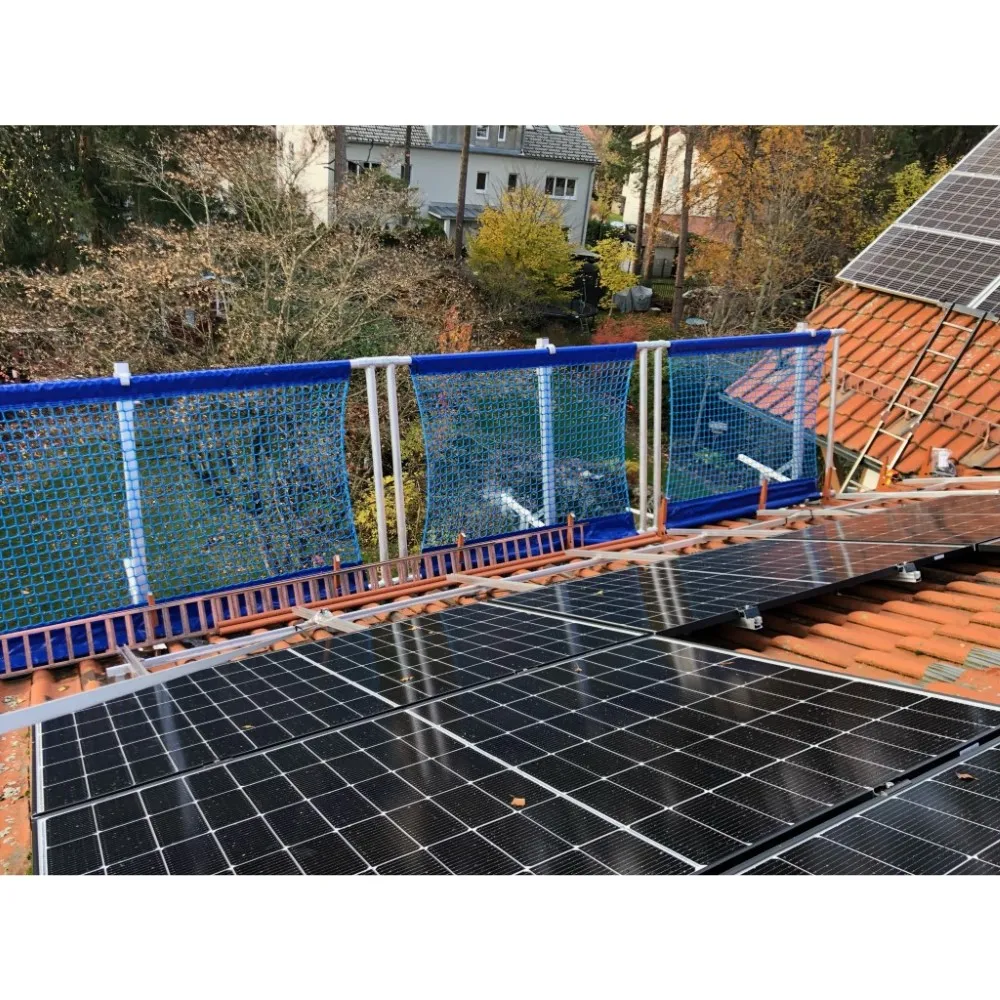

ASC fall protection class C for flat and pitched roofs

The ASC roof edge protection with safety net and integrated toeboard (Class C) increases the safety for working at height. The installation of the fall protection not only improves working conditions, but also ensures that the work can be completed quickly and above all safely.

This type of roof edge protection has, in addition to a quick installation and integrated toeboard, the advantage that the posts can be placed at any desired position. In addition, the wall stanchion is telescopically adjustable, so you never end up on a window.

Features:

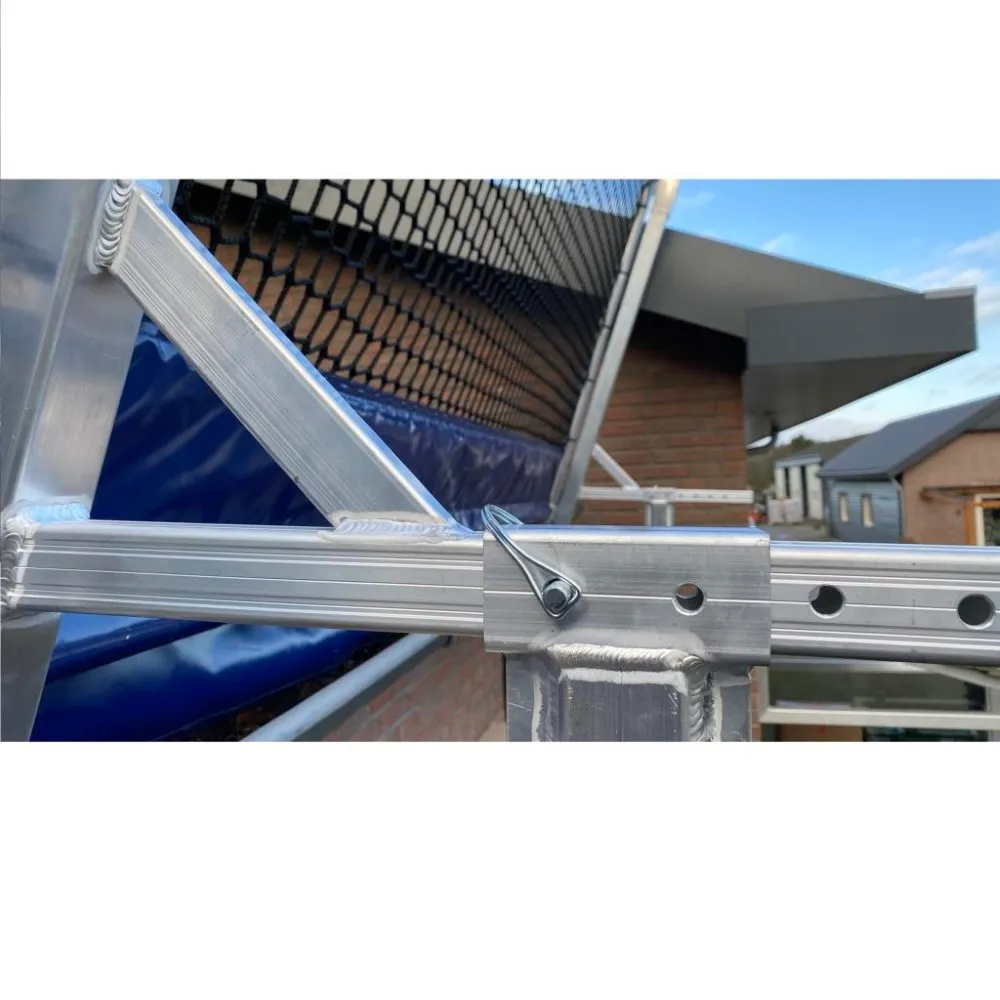

• Telescopic stanchion with large footplate, the upright can be placed in any position.
• Edge board directly integrated into the safety net.
• Quick and easy assembly.
• Dismountable, very compact to store and transport.
• Available in 2 m and 3 m lengths, can be connected to any length.
• Maximum roof pitch 60°.
• Maximum roof overhang 60 cm (special length on request 80 / 100 / 150 cm).
• Applicable for flat roofs and pitched roofs with a maximum height of 20 meters.
• ASC roof edge protection Class A, B and C complies with the NEN-EN 13374 safety standard.

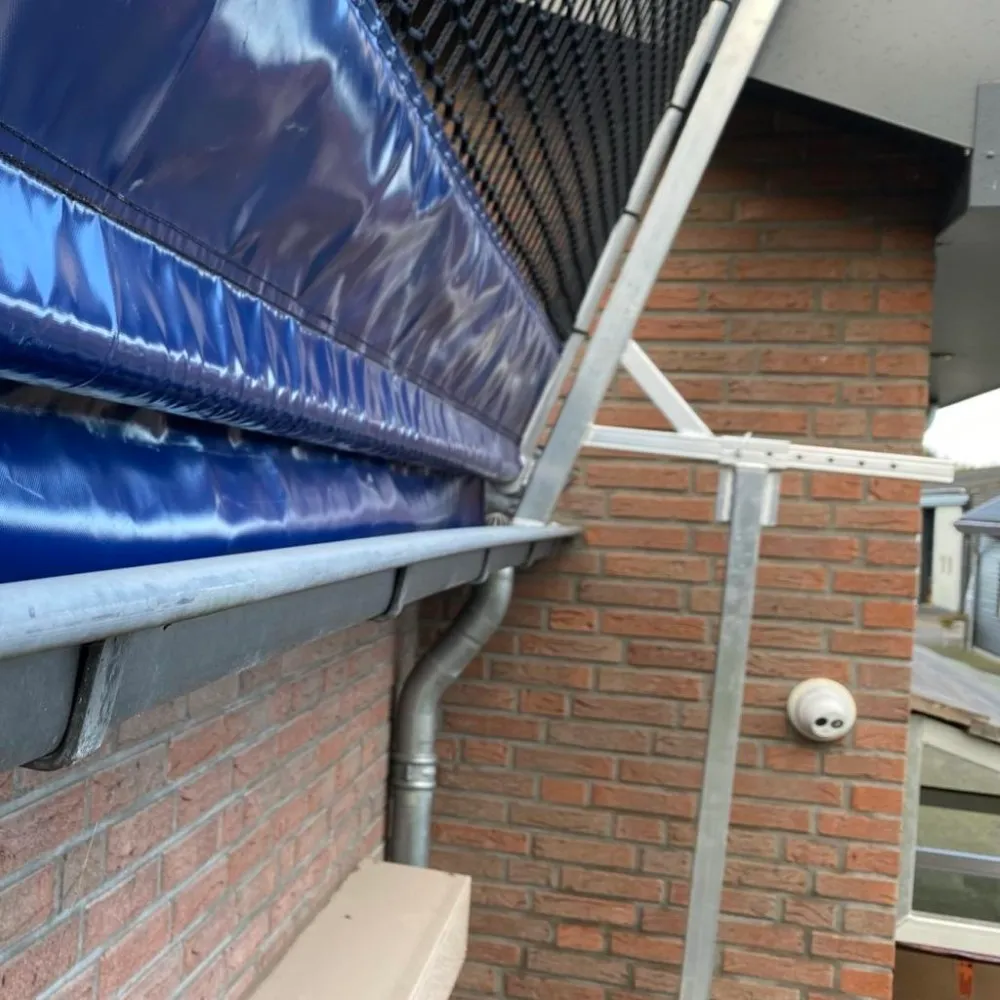

• If the bearing capacity of the gutter is insufficient or questionable, the stanchion can be bolted to the rafter.
