The A-Line folding scaffold 90 cm wide is standard equipped with ribbed extension tubes for height expansion. This foldable mobile scaffold is expandable to a working height of 7.85 m. The indoor scaffold can be easily increased with extra frames & braces, these are always available from stock!

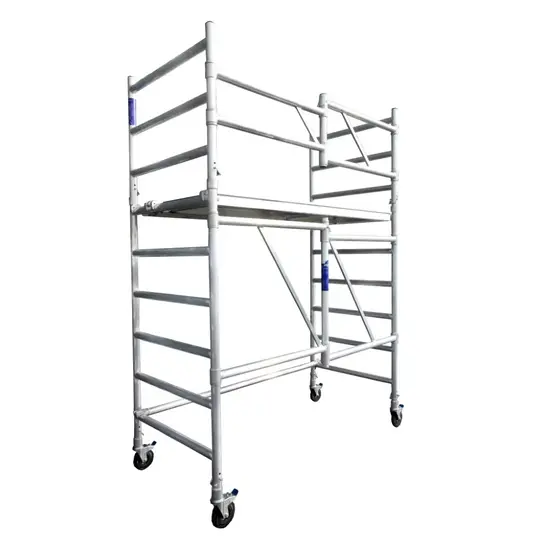

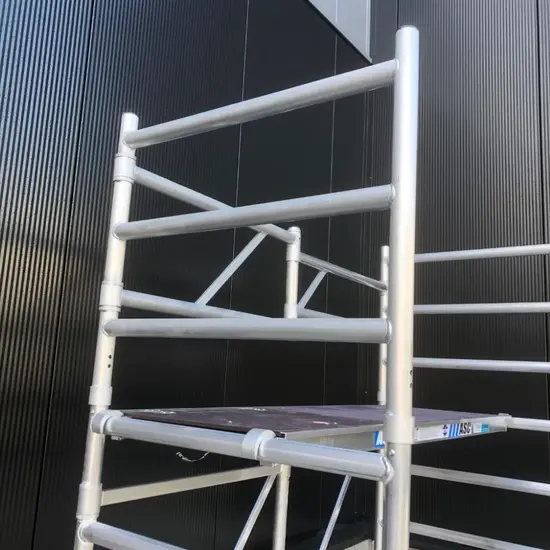

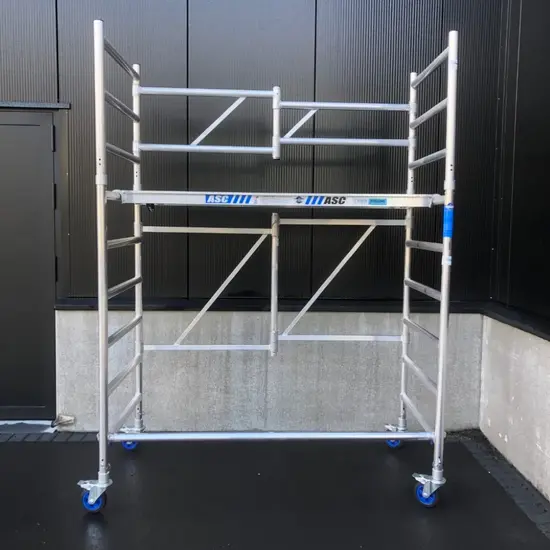

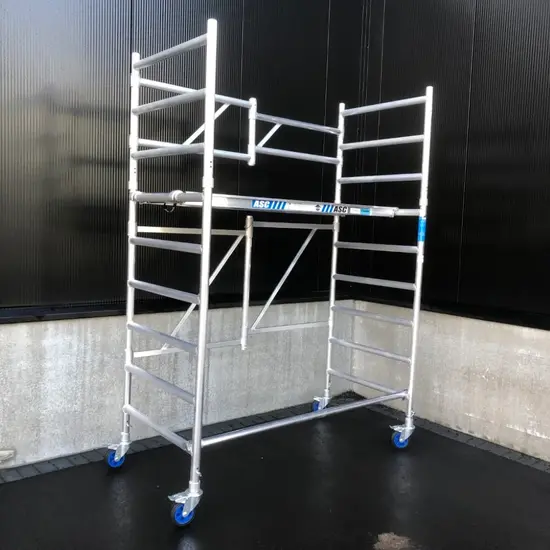

The ASC aluminum folding scaffolding 90x190 is easy to use and easy to store/transport. The horizontal rungs of the construction frames have an anti-slip profile. The platform is 60 cm wide, braces can be placed along the platform. The platform can be moved every 28 cm.
Scaffold parts:
- 1x ASC folding scaffold 90x190 frame D90-6
- 1x ASC folding scaffold 90x190 frame D90-3

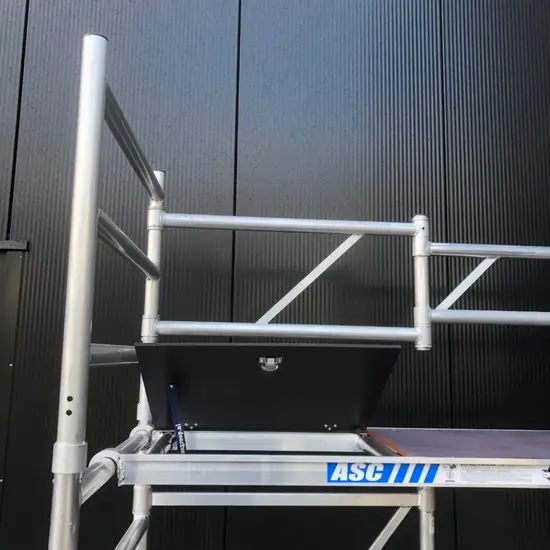

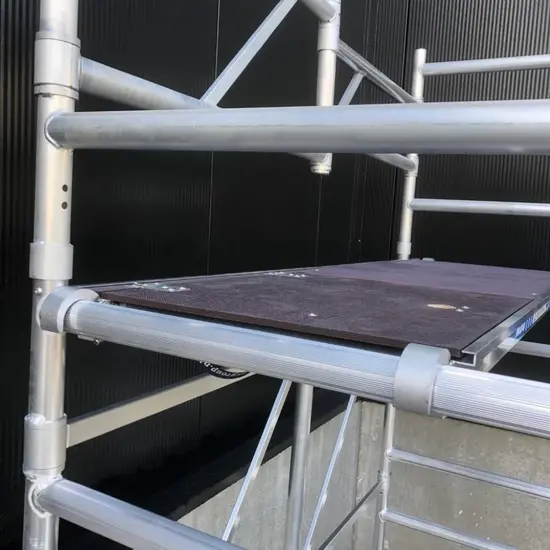

- 1x ASC platform 190, wood
- 1x ASC horizontal brace 190

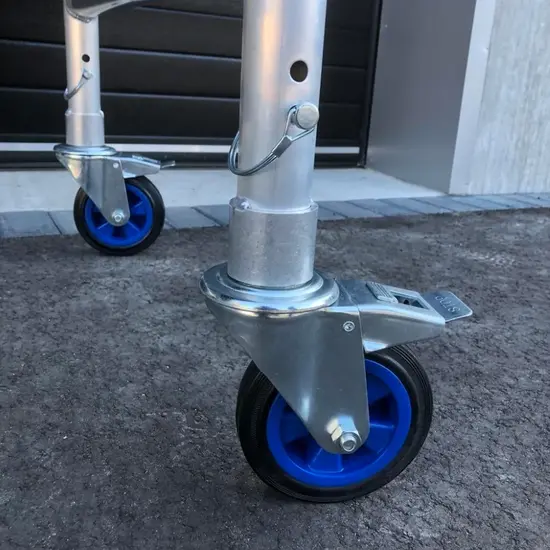

- 4x Scaffold wheel 150 mm rubber

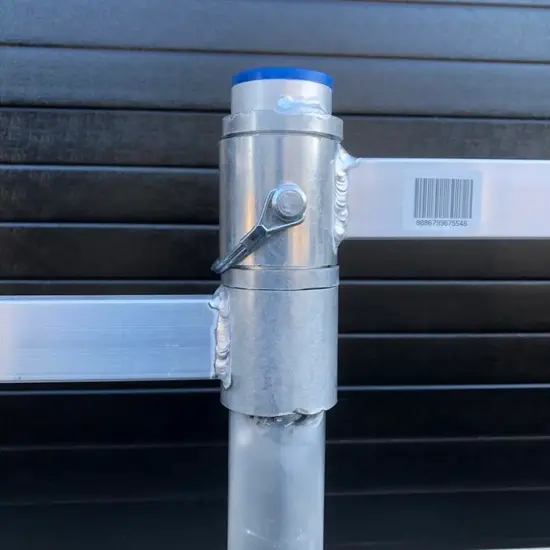

- 10x Locking clip
What does working height mean?
Working height is understood to mean the height at which you can work when standing on the platform. The formula used for this is platform height + 2 meters = working height. This is an indication and may differ slightly in practice, depending on your own body measurements.
Contact our customer service
Sizes scaffold Length x Width x Heigth (m): | 1.90 x 0.90 x 2.85 m |
Maximum working height (m): | 3.85 m |
Maximum platform height (m): | 1.85 m |
Weight (kg): | 46 kg |
Maximum load platform (kg): | 225 kg |
Maximum load scaffold (kg): | 450 kg |
Wheels: | 150 mm / rubber / not adjustable |
Type user: | Professional |
Scaffolding class: | Classe III (200 kg/m²) |
Norm: | NEN-EN 1004 / EN 1298 / TÜV-GS |
Guarantee: | 10 years |
