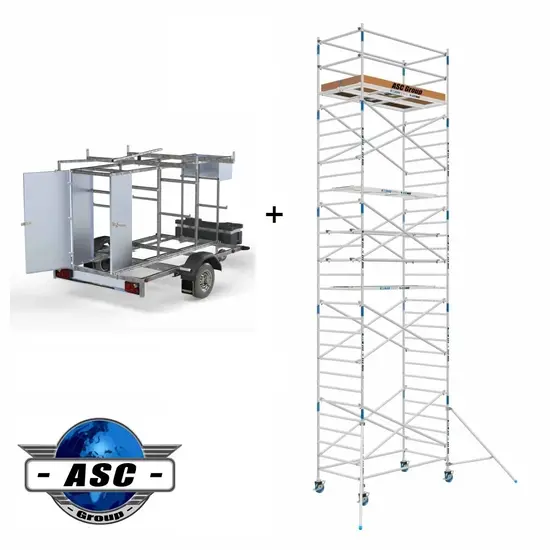

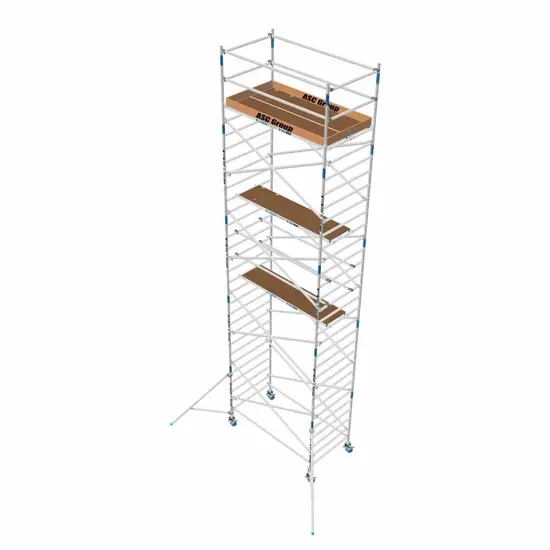

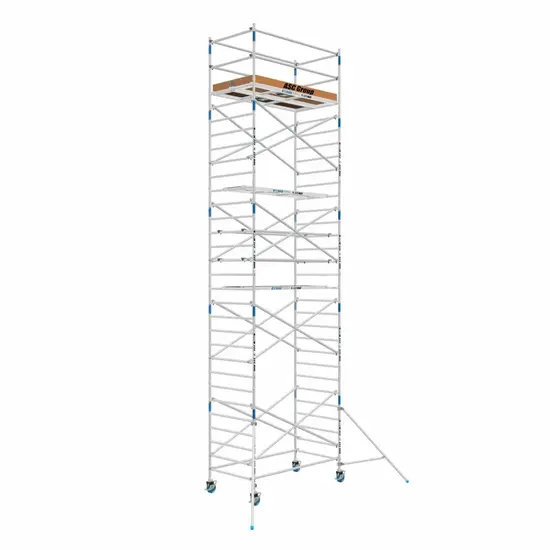

ASC mobile scaffold 135 x 250 x 10 m + lockable trailer

Offer ASC mobile scaffold tower including lockable trailer.

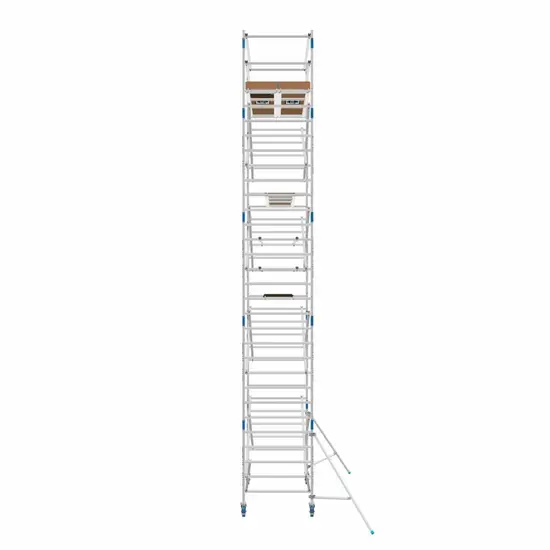

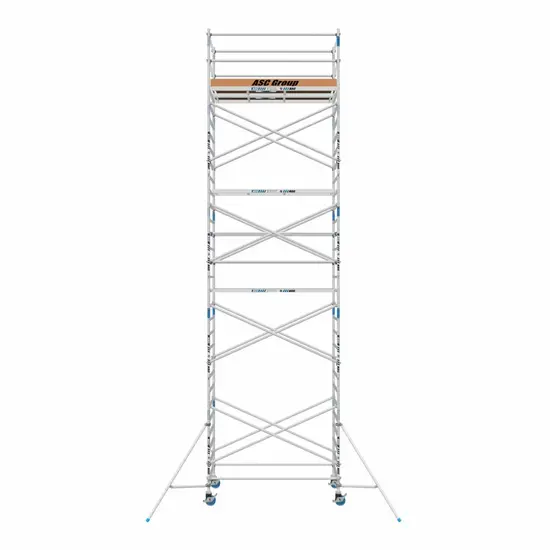

The universal ASC rolling scaffold with a working height of 10.2 meters is supplied in combination with the lockable scaffolding trailer 250. No more overloading, which prevents loss of time, also damage and loss of your scaffolding material is prevented.

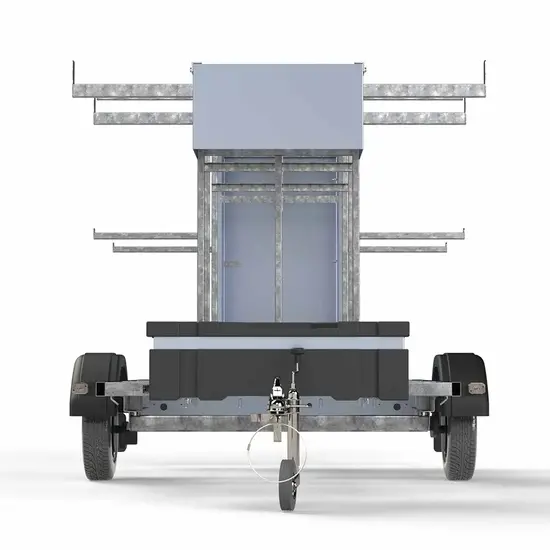

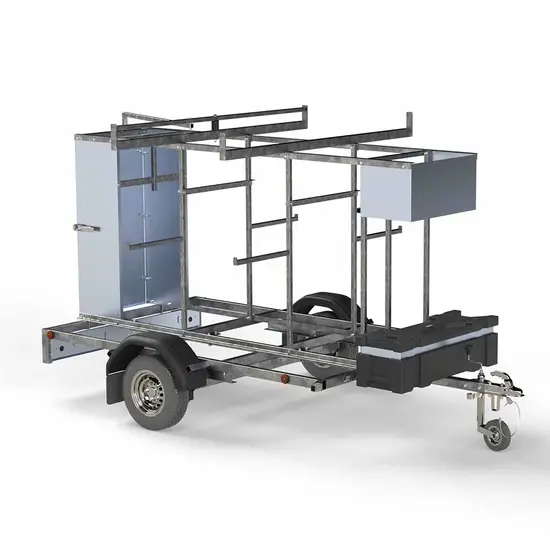

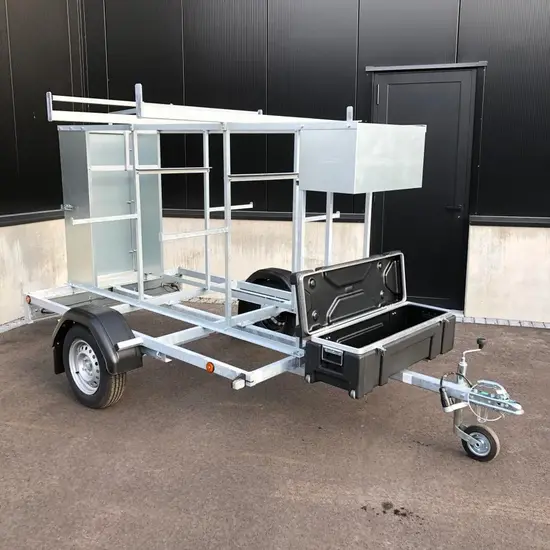

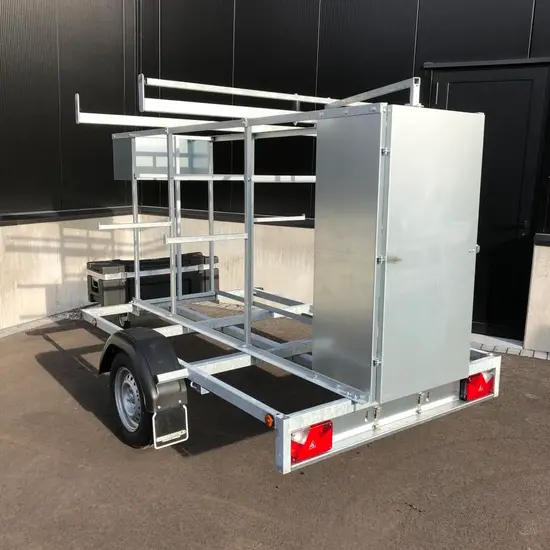

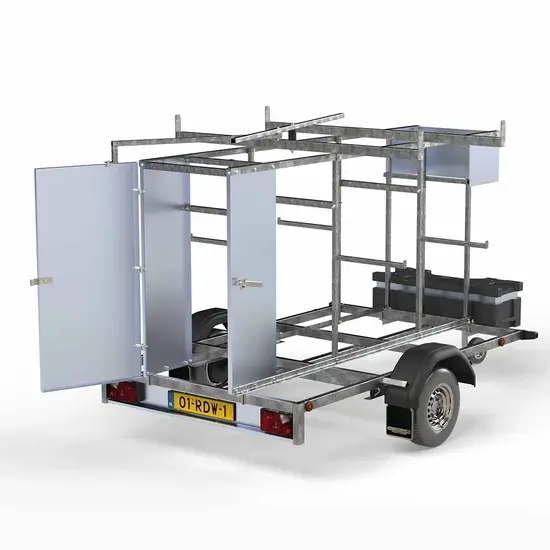

The lockable scaffolding trailer is specially designed to easily protect all your scaffolding material from theft. The lockable trailer also ensures maximum protection for the owner's wheels, stabilizers, frames, braces and platforms.

Mobile scaffold parts:

• 8x   ASC construction frame 135-28-7
• 2x   ASC guardrail frame 135-50-2
• 2x   ASC platform without hatch 250
• 2x   ASC platform with hatch 250
• 10x ASC horizontal brace 250
• 16x ASC diagonal brace 250
• 4x   ASC scaffold wheel 200 mm with steel spindle (height adjustable)
• 2x   Scaffolding adjustable stabilizer 200
• 1x   ASC toe board wood
• 16x Locking clip
• 1x   Lockable scaffold trailer 250

* The number of parts in the photos may differ. The above parts list applies.

Extra information

• The double width rolling tower can be extended to a maximum working height of 14.20 m.
• Make your choice between platforms with wooden deck or carbon deck. A platform with carbon deck is 25 percent lighter than a platform with wooden deck.
• The ASC standard rolling scaffold is suitable for indoor and outdoor work.
• The ASC universal rolling scaffold with braces is equipped with double-braked wheels as standard, they are height adjustable up to 25 cm.
• The ASC wide mobile scaffold has a handrail at knee and hip height.
  Faster erection and dismantling thanks to the innovative platform hook with integrated wind-up protection.
• This aluminum rolling scaffold is equipped with an toe board set so that no materials or tools on the platform cannot fall down.
• For freestanding use, you will need 4 stabilizers.
• Refer to the ASC mobile scaffolding manual for assembly instructions.
• All mobile scaffold parts are available separately.

What does working height mean?

Working height is understood to mean the height at which you can work when standing on the platform. The formula used for this is platform height + 2 meters = working height. This is an indication and may differ slightly in practice, depending on your own body measurements.
