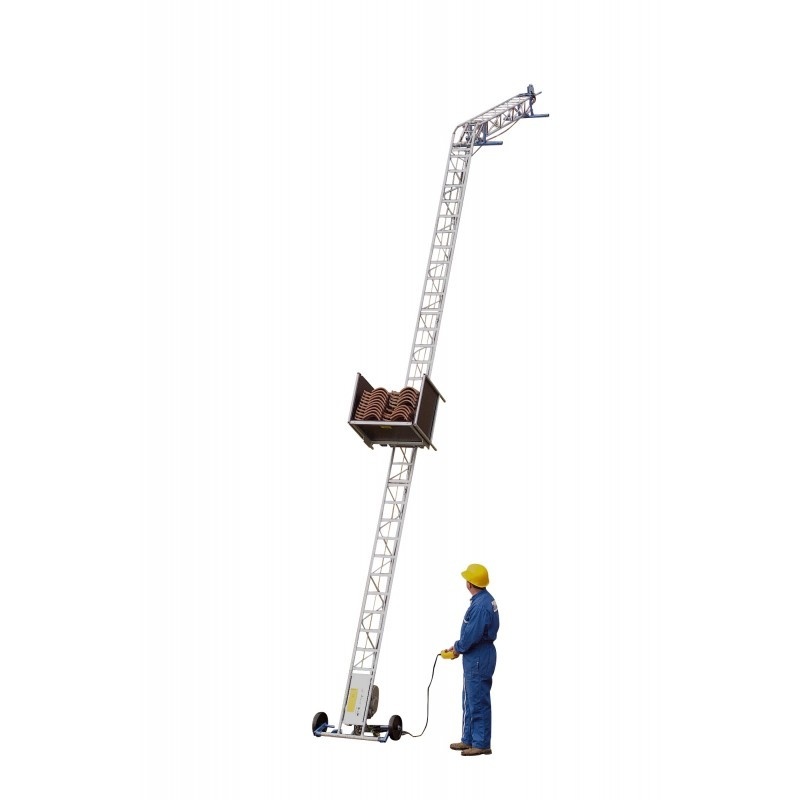

Comabi ladder lift Apache 10.6 m with bend section

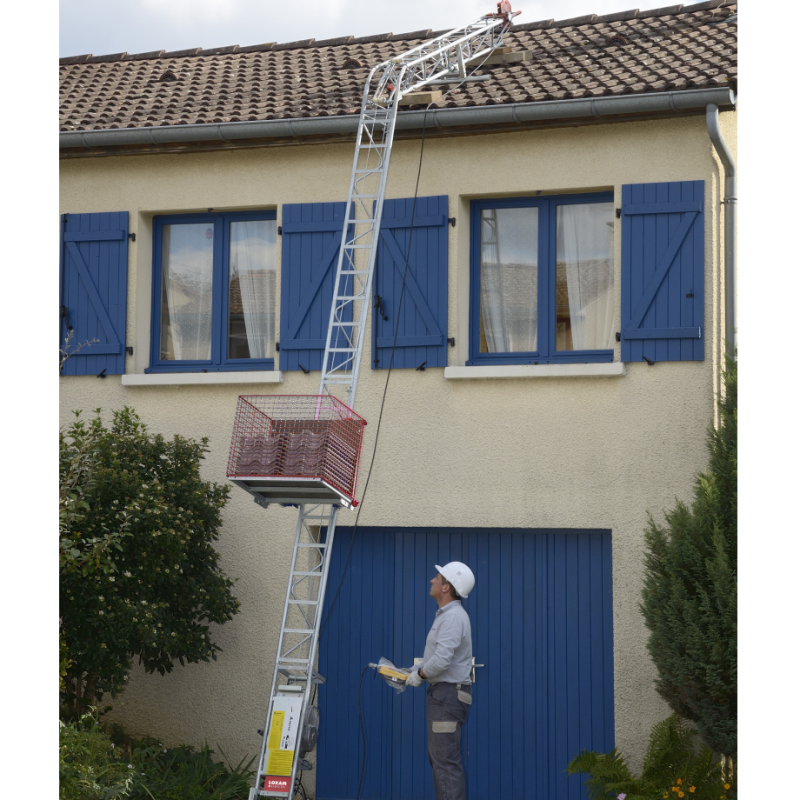

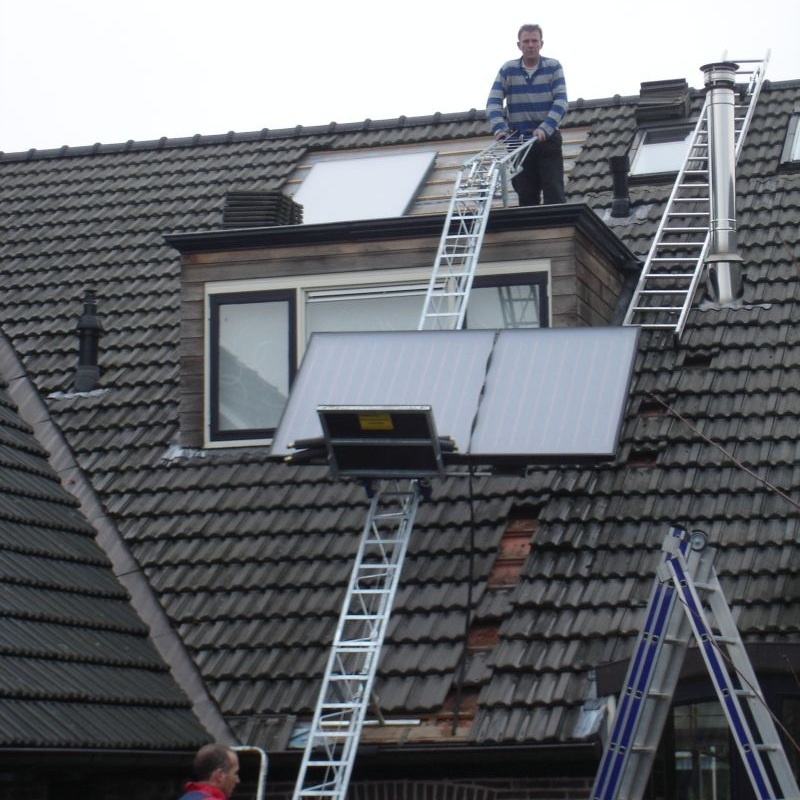

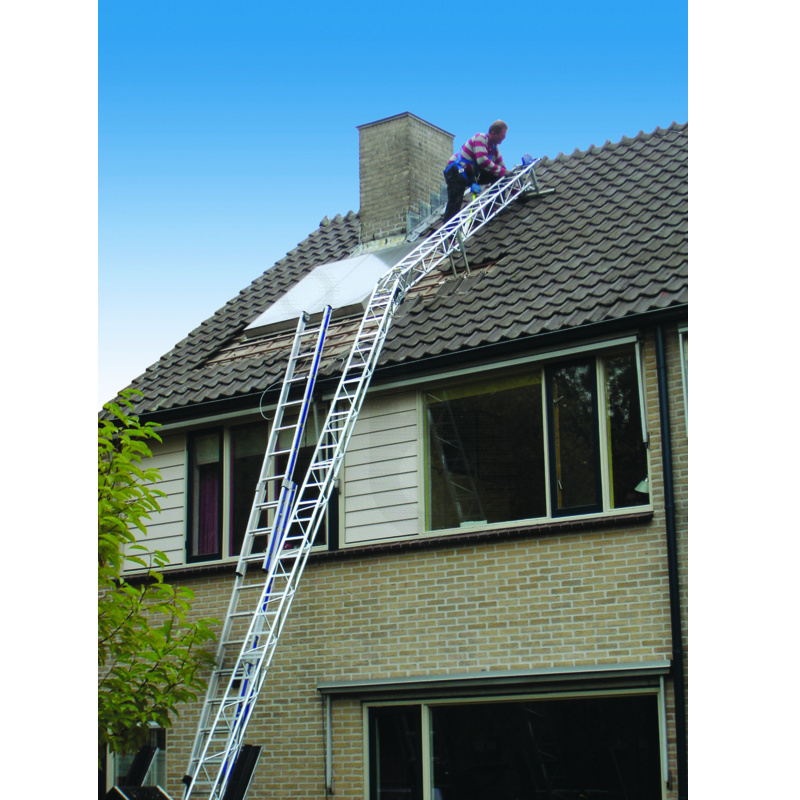

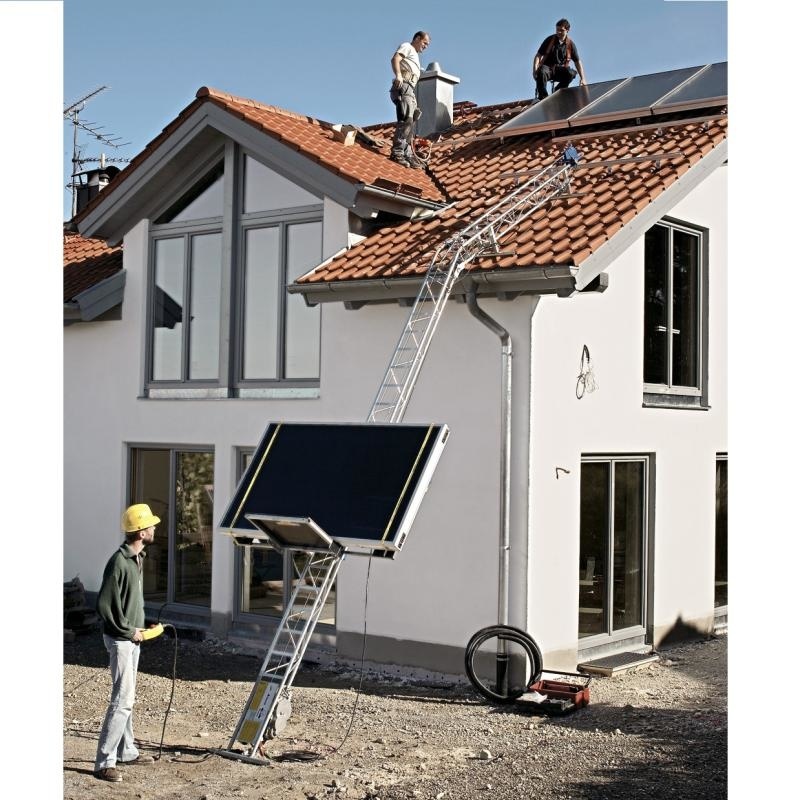

The Comabi Apache tile elevator is a multifunctional, demountable ladder elevator with galvanized steel triangular elements. This professional robust ladder lift is suitable for transporting all kinds of materials such as roof tiles, bricks and insulation materials, but also solar panels or other large and heavy products.

The ladders of the Apache elevator have only 1 locking point and are therefore very quick and easy to assemble. The winch assembly is easy to move like a wheelbarrow due to the wheels provided.

Advantages:

• The strong triangular construction made of galvanized metal means that additional support is not required.
• Buckling section adjustable 0-65 degrees.
• Safe and easy to handle thanks to the integrated winch in the base section.
• Can be used anywhere, even where mobile ladder elevators cannot be placed.

Features:

• Motor 230V/0.75Kw 16A IP 44 with winch/steel cable length 42 m - dia 5 mm
• Remote control with emergency stop, length 3 m, IP 65
• Ladder length: 11 meters
• Extendable up to 20 meters
• Inclination angle of ladder elevator: 45 to 90 degrees
• Elevator speed: 18 m/min with 150 Kg load
• Material: galvanized steel
• Maximum load: 150 Kg
• Standard: NF EN 12158-2, suitable for intensive use
• Directive: machinery directive 2006-42-CE
• Warranty: 2 years

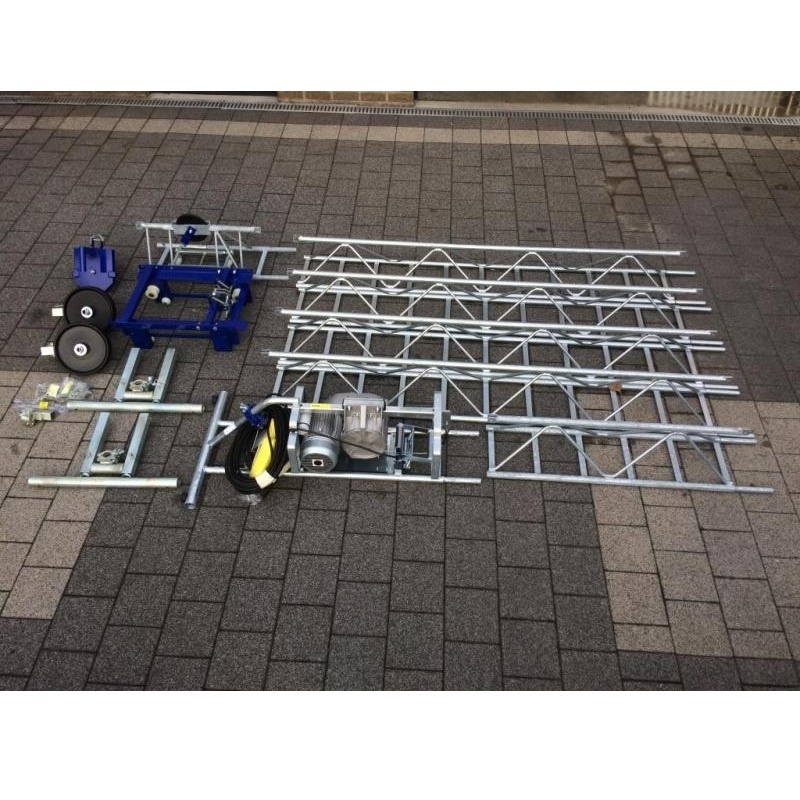

Composition:

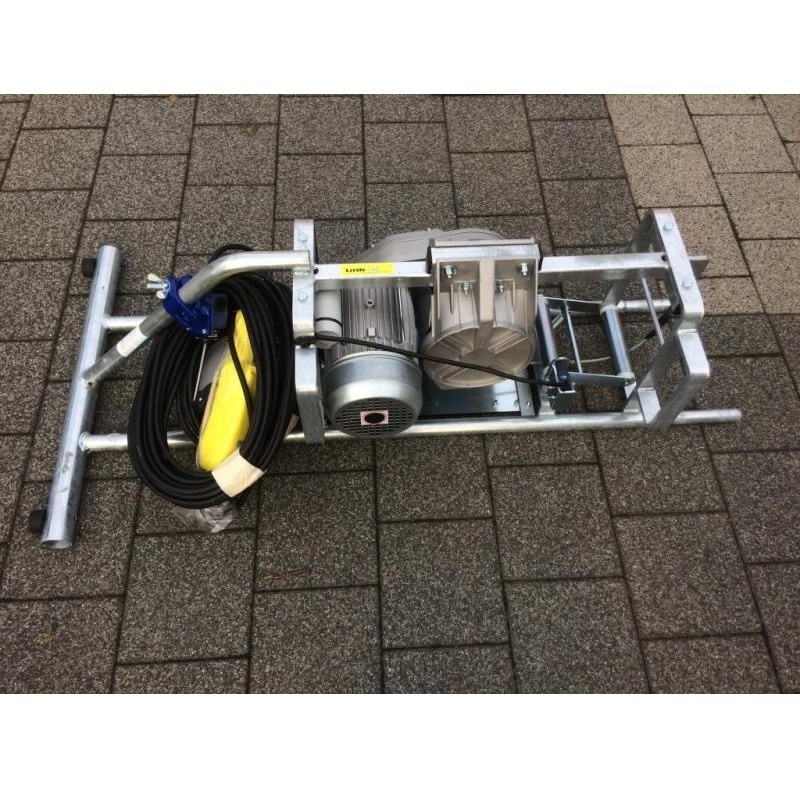

• 1x   Base frame with motor and winch gear
• 1x   Remote control with cable length 3.20 m
• 4x   Ladder 2 m
• 1x   Ladder 1 m

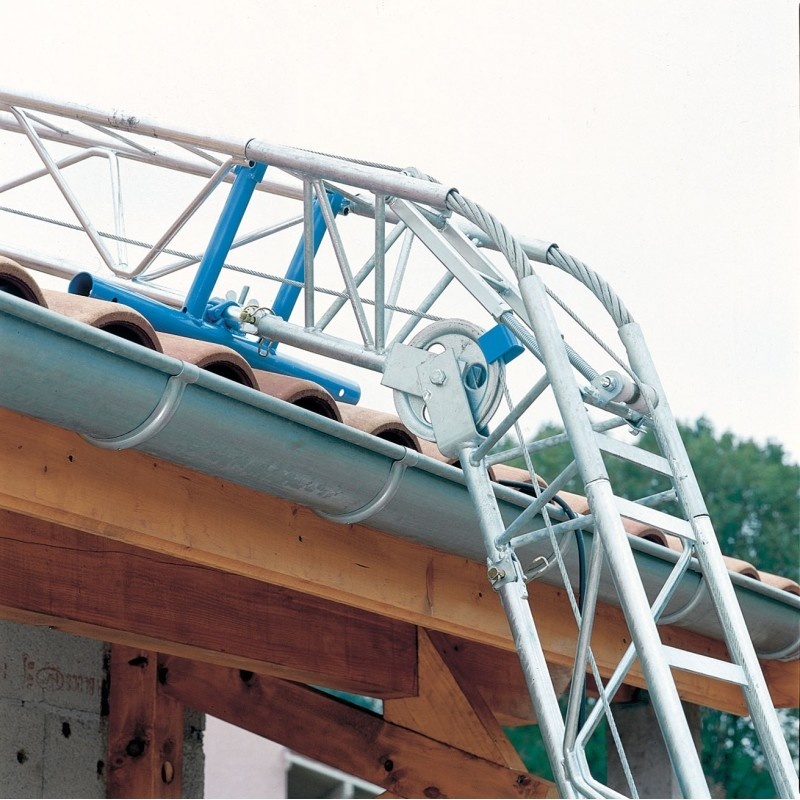

• 1x   Bend section adjustable 0-65 degrees
• 1x   Head section with cable pulley
• 1x   Trolley with fall protection

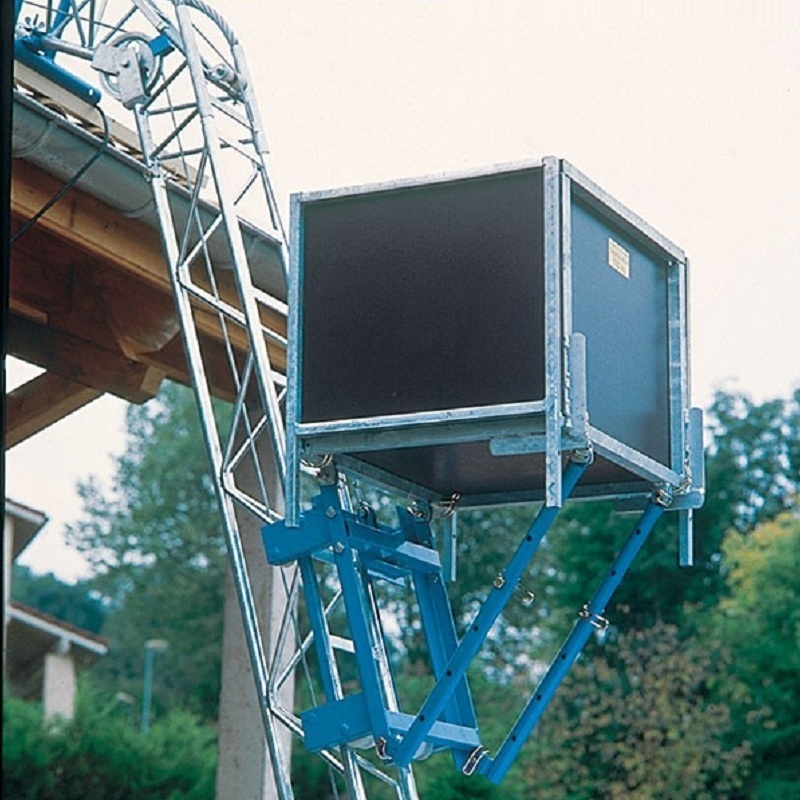

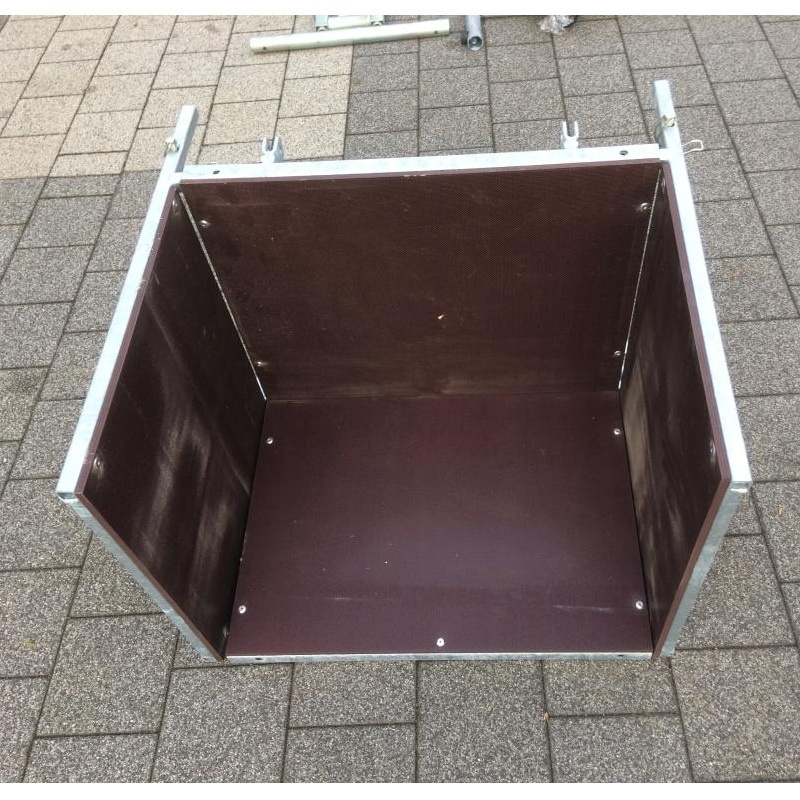

• 1x   Material platform with 2 removable side panels
• 2x   Wheel diameter 300 mm
• 2x   Single adjustable support
• 1x   Bottom limit switch
• 10x Locking pin
• 1x   Combination wrench no. 19
