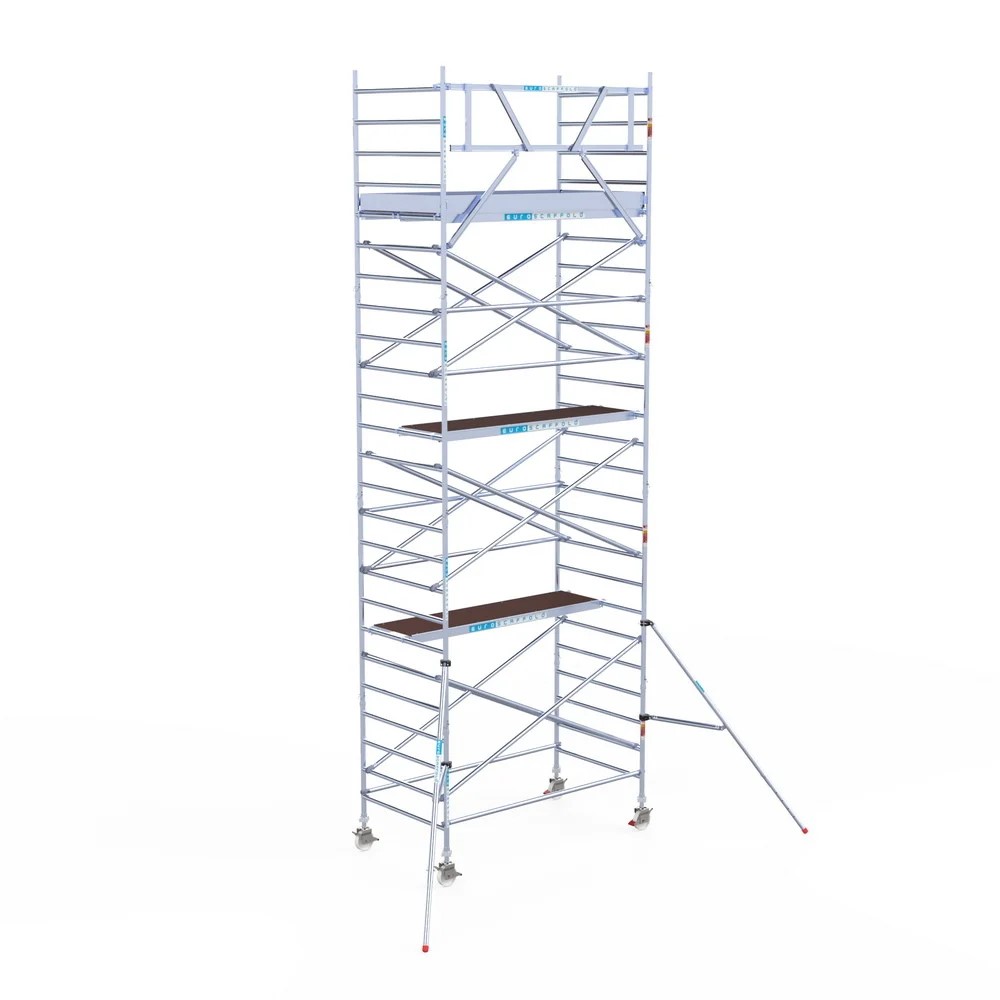

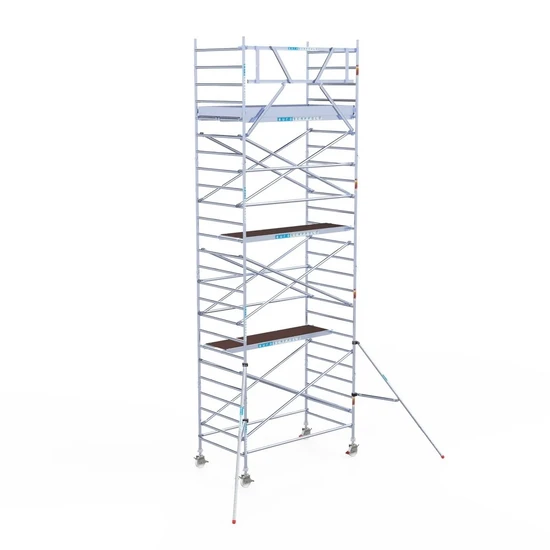

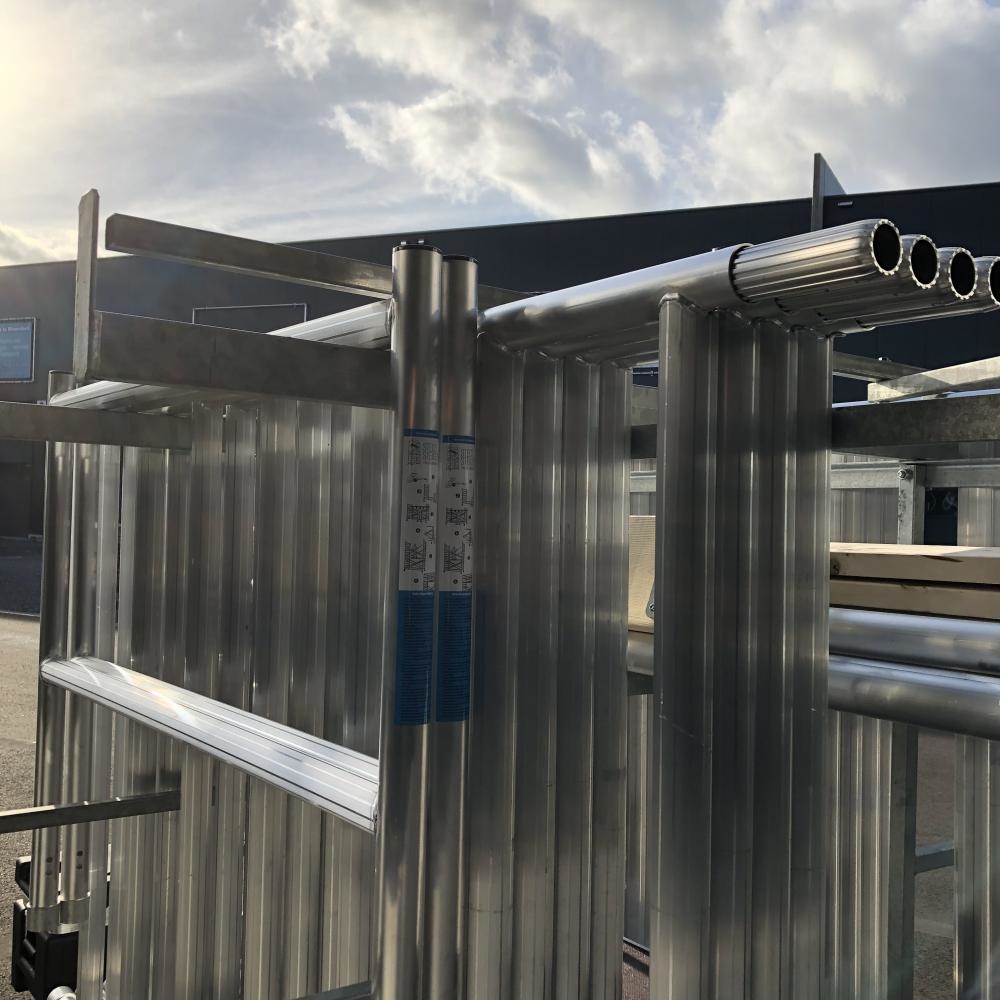

EuroScaffold mobile scaffold 135 x 250 x 8 m + lockable trailer

Parts set:

• 6x   Construction frame 135-28-7
• 2x   Construction frame 135-28-4
• 3x   Platform without hatch 250
• 1x   Platform with hatch 250
• 1x   Safety guardrail 250
• 6x   Horizontal brace 250
• 12x Diagonal brace 250
• 4x   Scaffolding wheel 200 mm with steel spindle, nylon (height adjustable)
• 2x   Adjustable stabilizer 200
• 1x   Toe board set aluminium
• 12x Locking clip

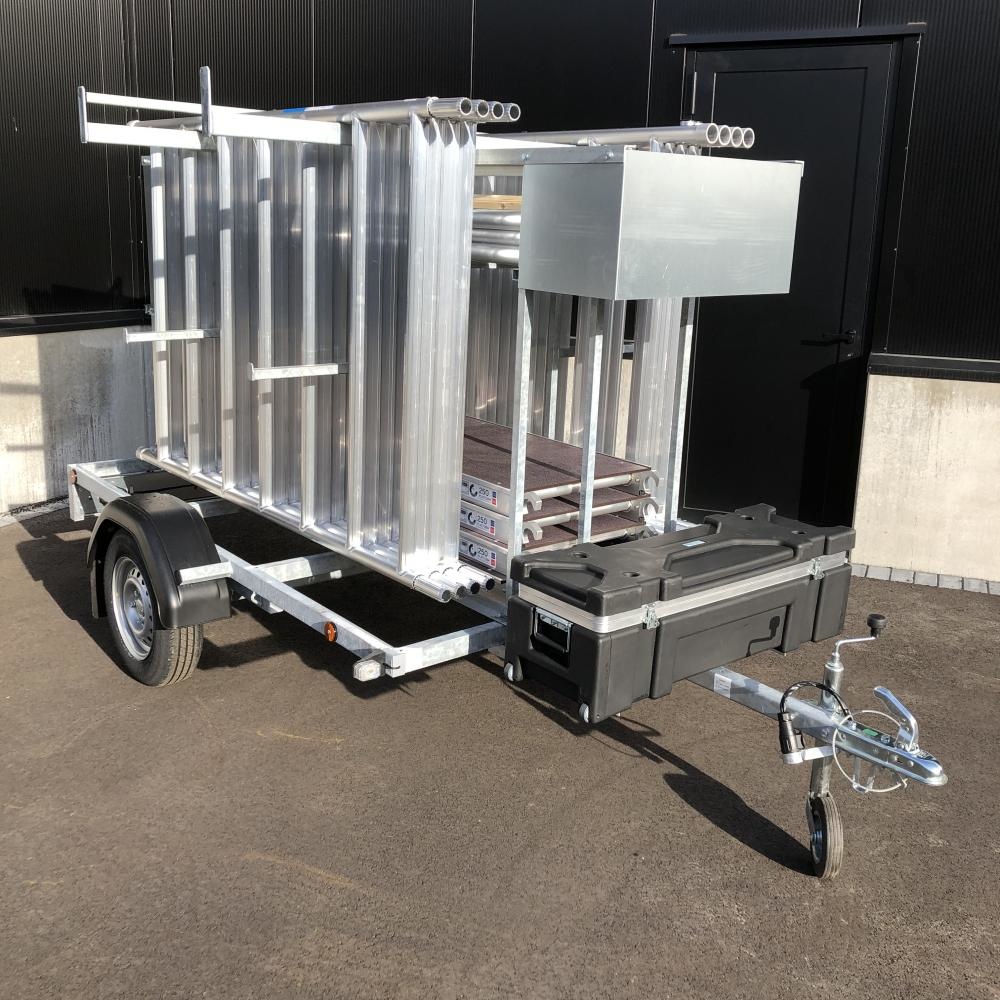

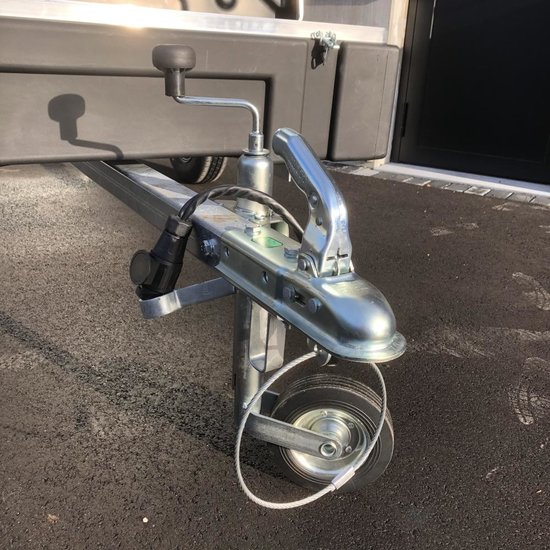

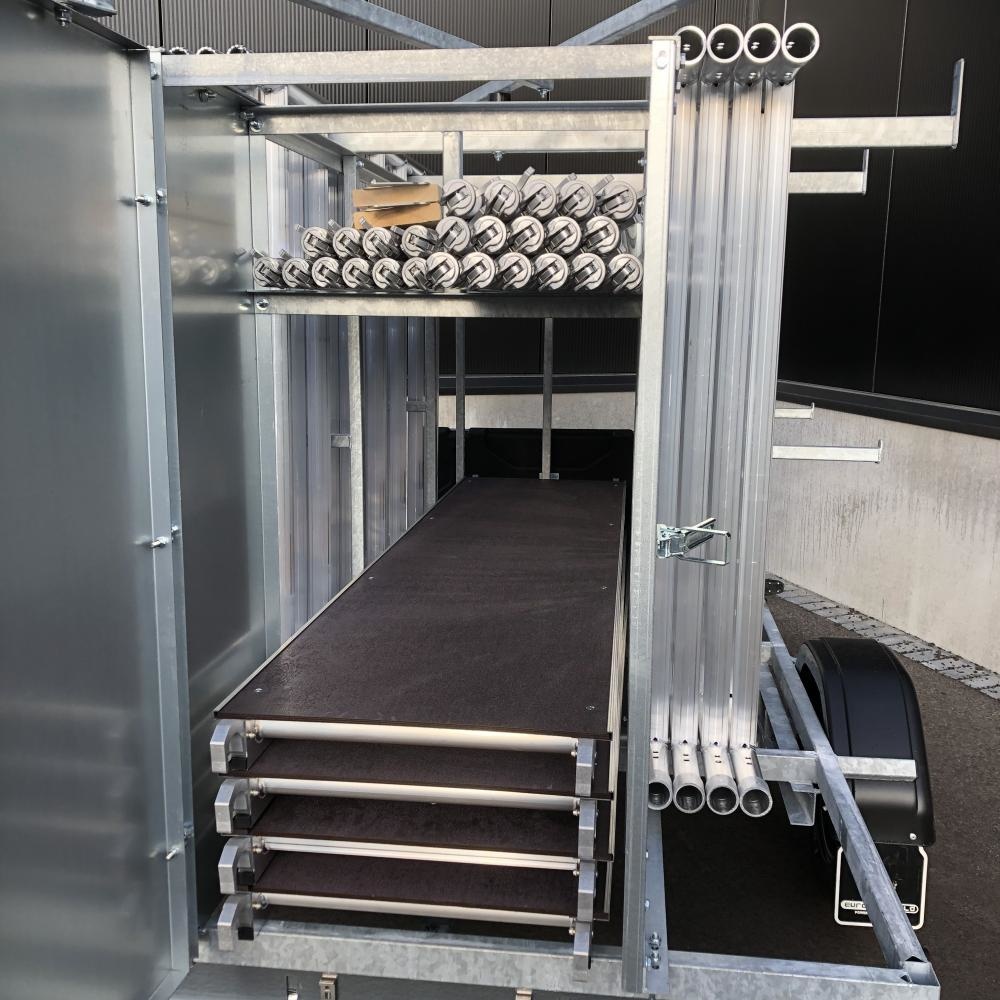

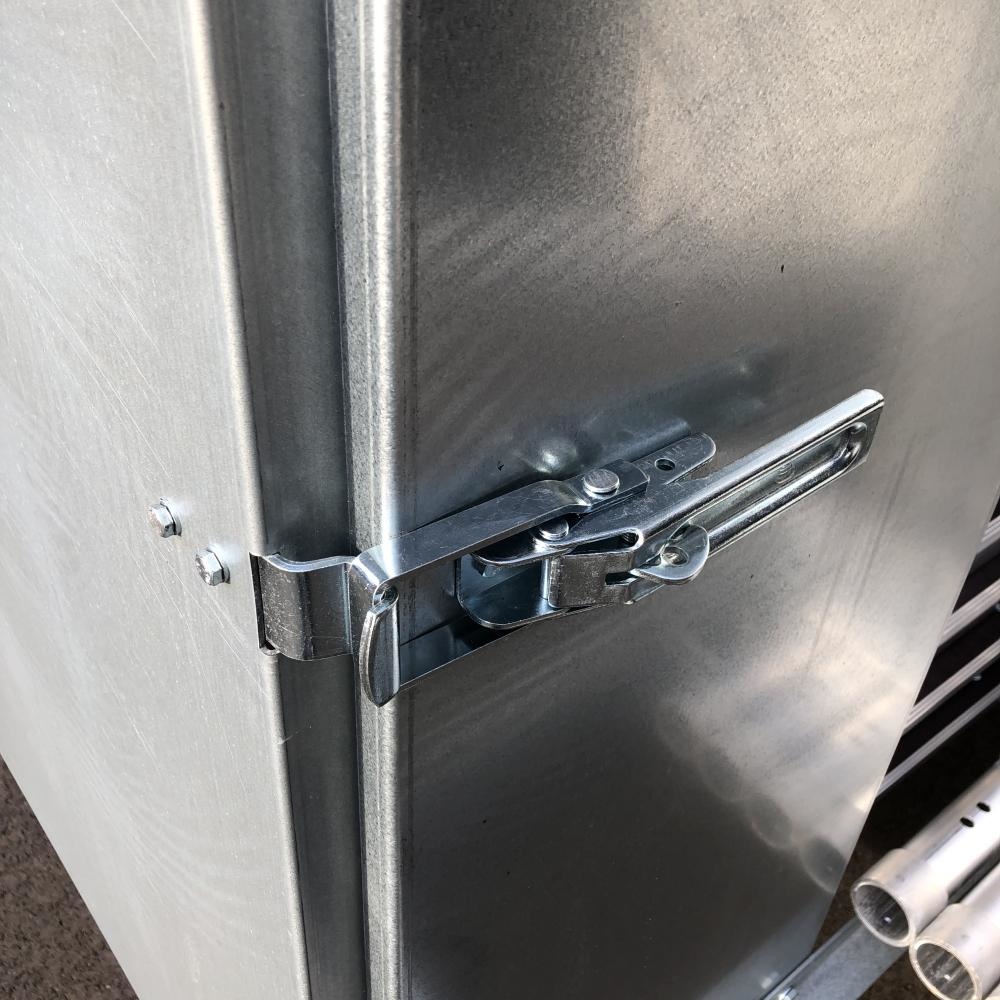

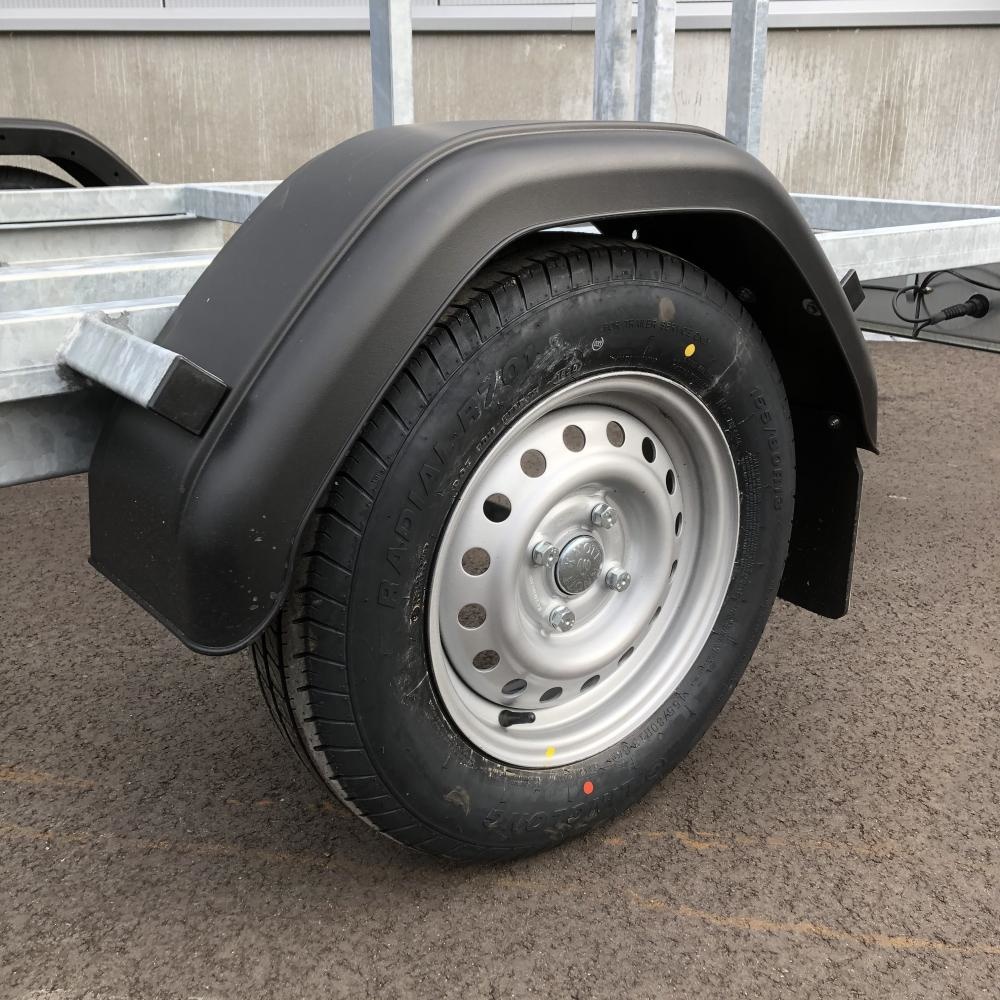

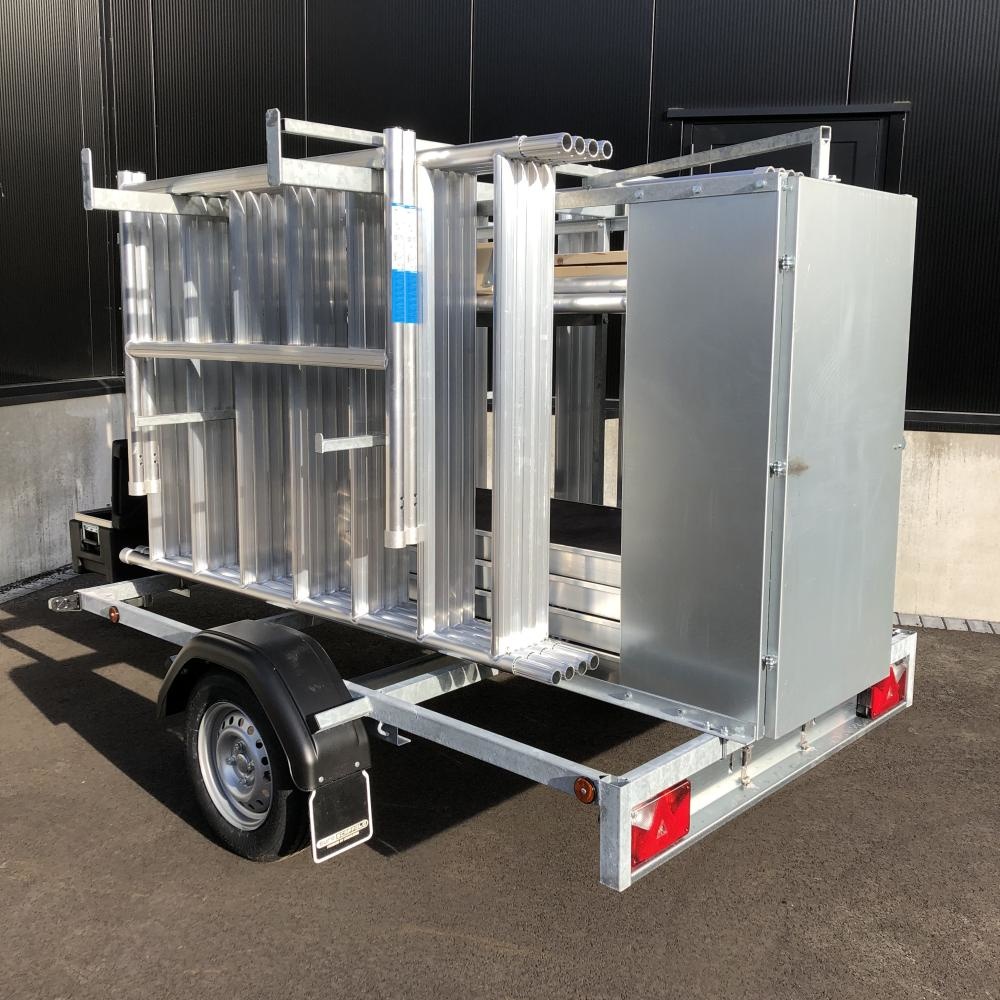

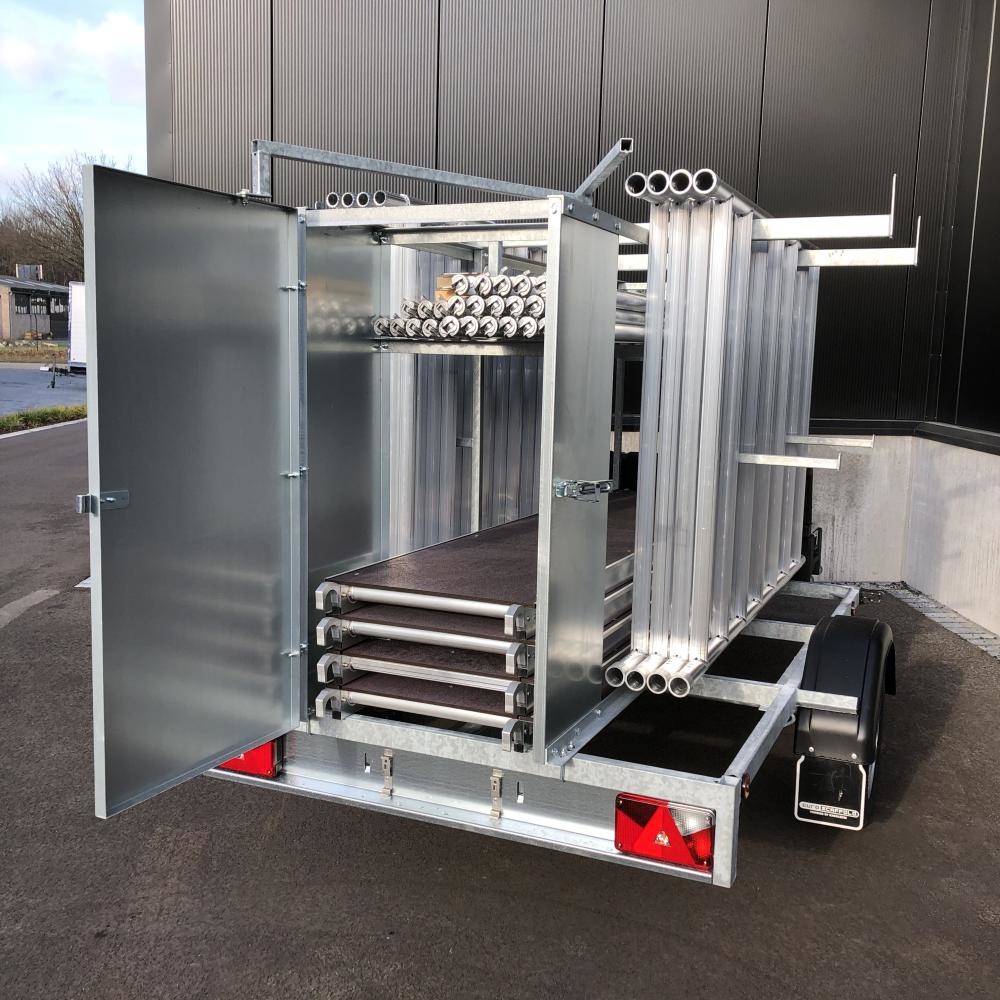

• 1x    Scaffold trailer lockable 250

(*) The number of parts in the photos may differ. The above parts list applies.

Extra information

• This rolling tower can be extended to a maximum working height of 14.20 m.
• Made of high quality aluminum, tube diameter 50.8 mm.
• Platform standard with a wooden cover plate with anti-slip. The platforms are also available with a carbon cover plate, which are 25% lighter and more weather resistant than concrete plywood.
• Refer to the EuroScaffold standard mobile scaffolding manual for assembly instructions.
• All rolling tower parts are available separately.

What does working height mean?

Working height is understood to mean the height at which you can work when standing on the platform. The formula used for this is platform height + 2 meters = working height. This is an indication and may differ slightly in practice, depending on your own body measurements.
