Euroscaffold SafeGuard roof protection for pitched roofs

Safeguard roof edge protection

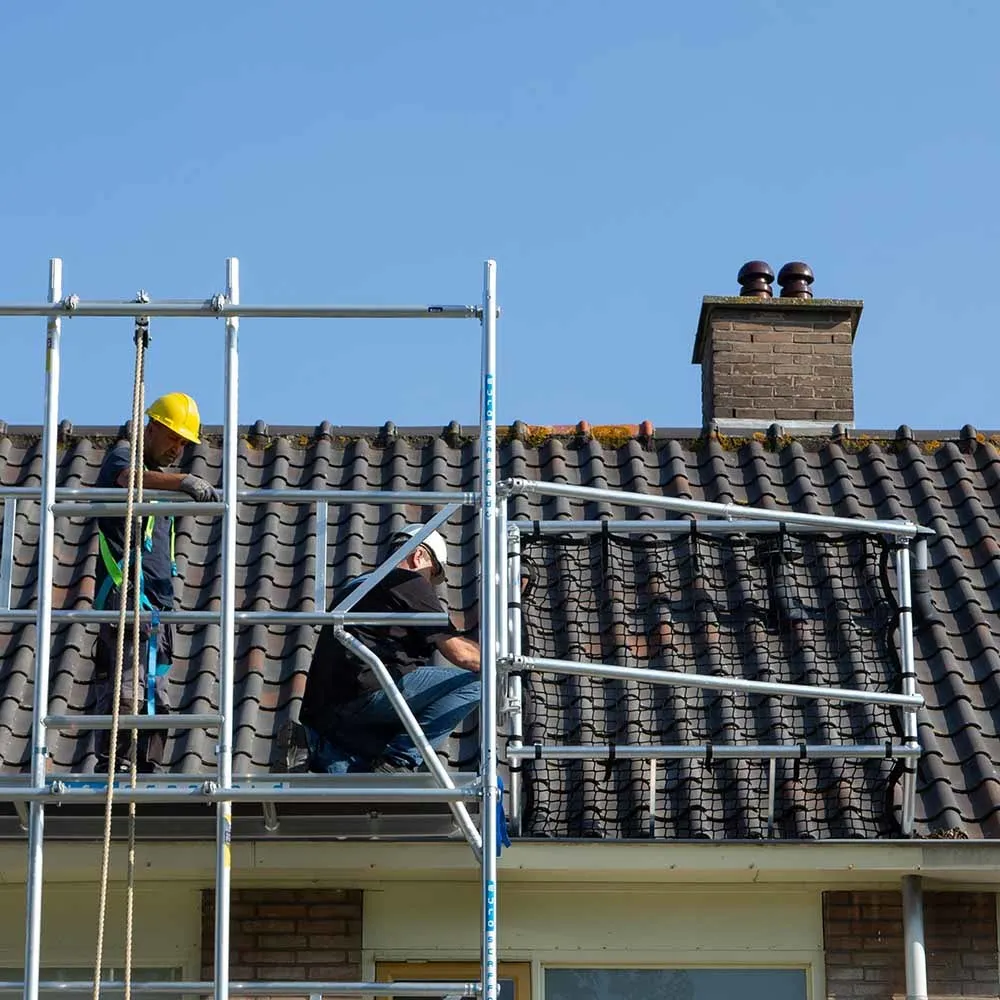

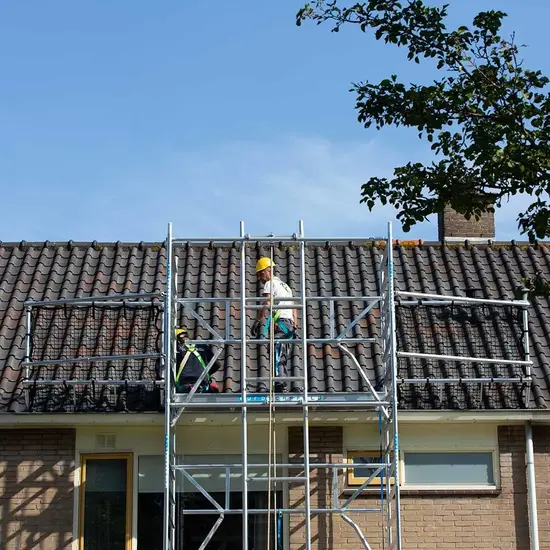

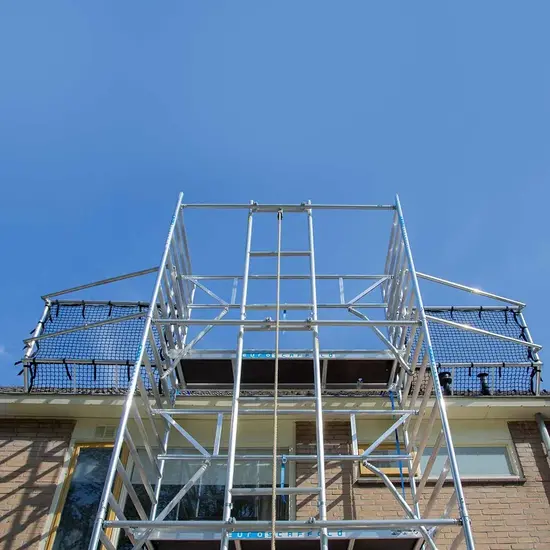

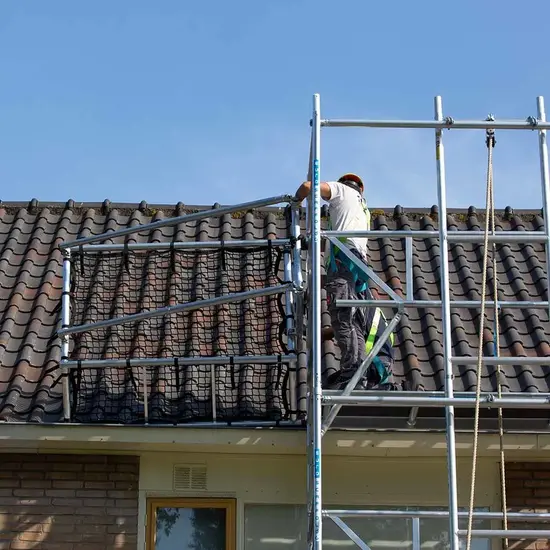

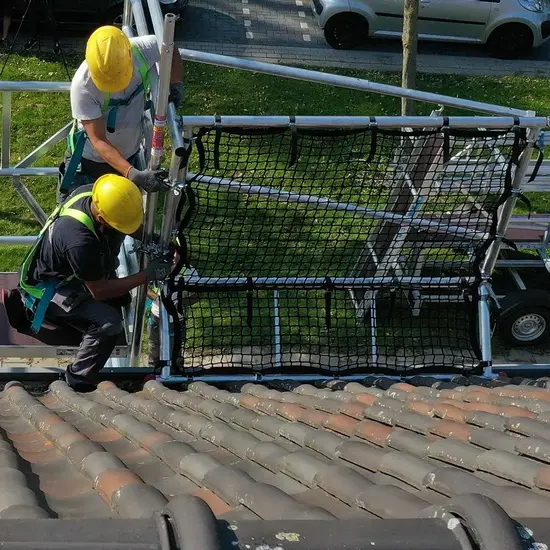

Guardrails for sloping roofs. The Safeguard roof edge protection consists of a left and right part which are mounted to the scaffold with couplers. It is essential that when using the Safeguard fall protection the scaffold is secured to the facade.

Various options are supplied for securing, such as wall fastening or a fastening for fastening to the wooden roof construction.

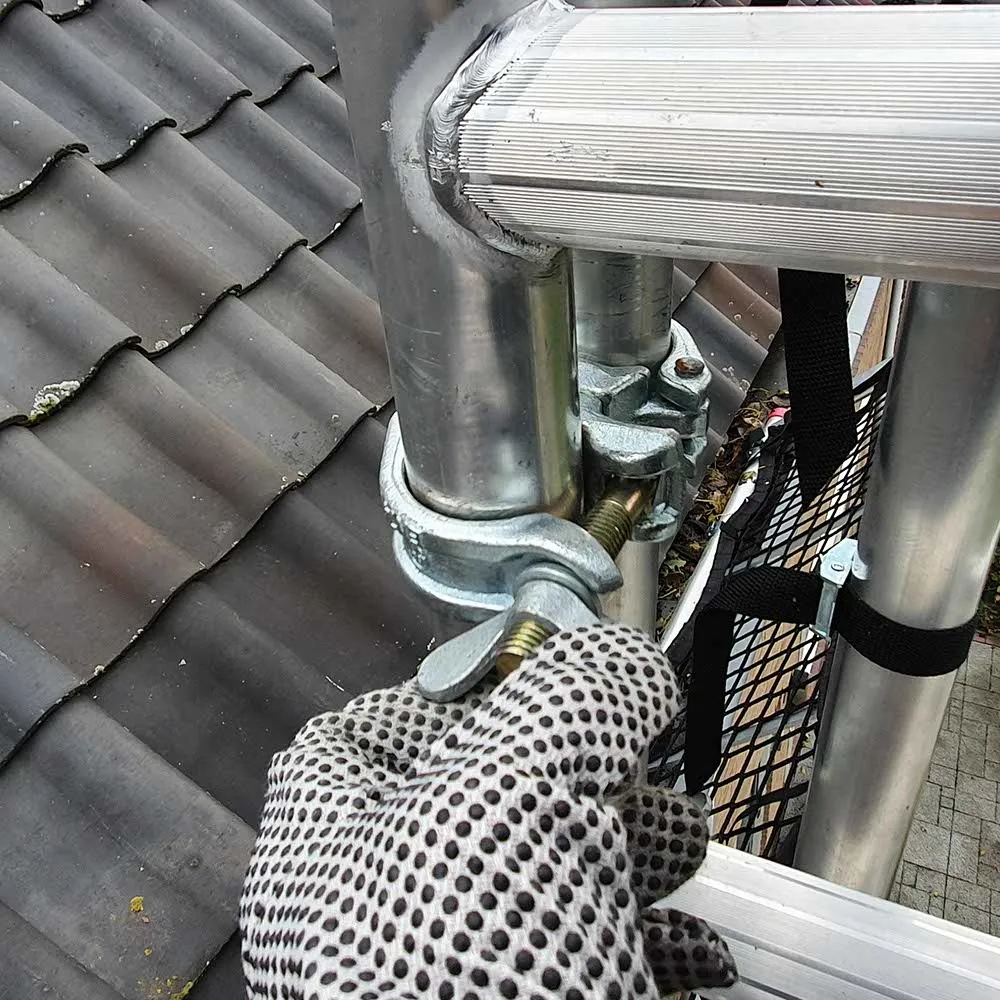

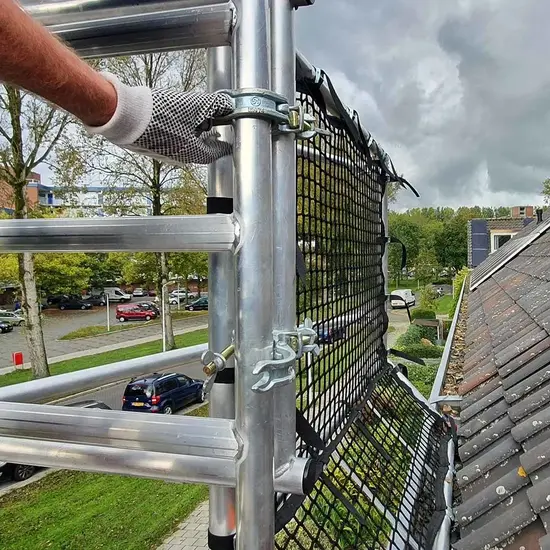

The SafeGuard fall protection fits any brand of rolling scaffold and is attached to the rolling scaffold using steel couplers.

Additional Information:

• The SafeGuard roof edge protection for sloping roofs conforms to standard EN 13374 Class C.
• Please refer to the Euroscaffold Safeguard roof edge protection manual for instructions.
• Dimensions fencing element: 1.65 m long x 1.35 m high
• Weight: 20 kg per guardrail

Parts list:

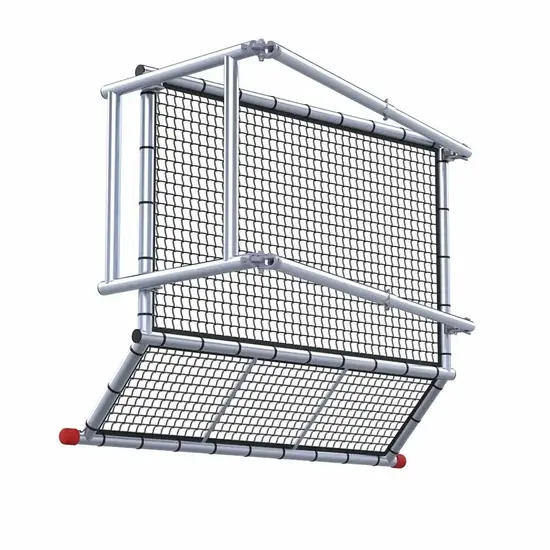

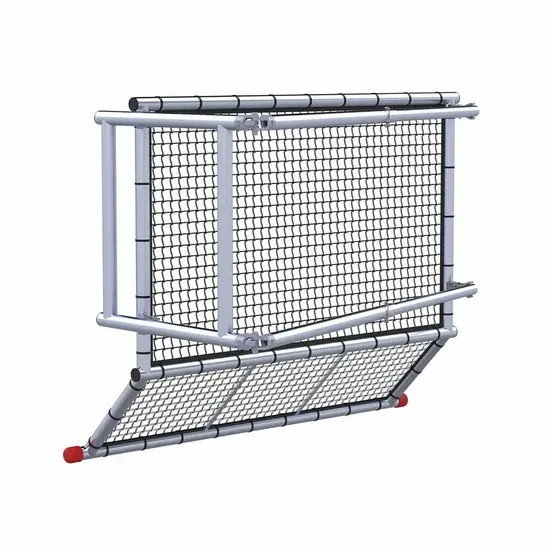

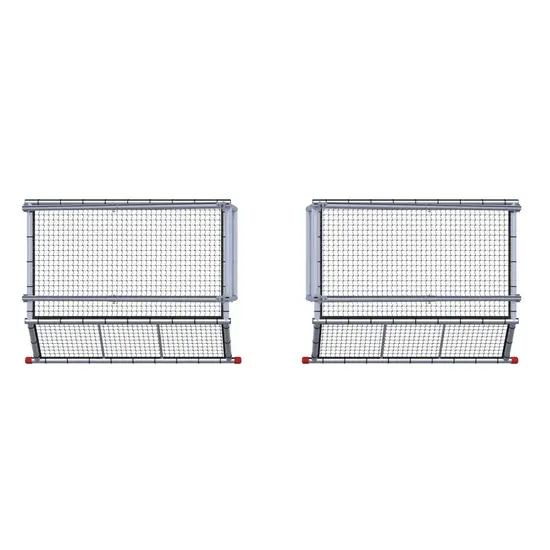

• 1x   Frame+safety net left
• 1x   Frame+safety net right
• 4x   Swivel coupler steel 51/51 mm
• 4x   Screw eye 12x120
• 20x S14 plug
• 2x   Wall anchor 50 cm galvanized steel
• 2x   Right angle coupler 51/51 mm steel
• 2x   Anchor point sloping roof

Notice! The Safeguard roof protection is supplied without scaffolding.
