The Genex Prosafe mobile scaffold tower made of glass fiber reinforced plastic is specially designed for the electrical, chemical and food industries. Its insulating properties (both thermal and electrical) make it an excellent tool for this sector.
The glass fiber reinforced plastic is extremely robust and resistant to electrolytic corrosion by salts and/or damage by acids. As a result, the carbon rolling tower is non-conductive, non-oxidizing, non-corrosive and very easy to clean.
The Genex Pro-Safe Span 500 carbon rolling scaffold offers safe access and workplace for work:
- In case of explosion (especially static electricity)
- In case of fire
- In the immediate vicinity of high voltage
- In a clean environment (e.g. in the food industry)
Technical specifications:
- 5kV DC insulation resistance
- 110 kV AC High Voltage Resistor
- 220 kV AC High Voltage Resistor
Parts List:

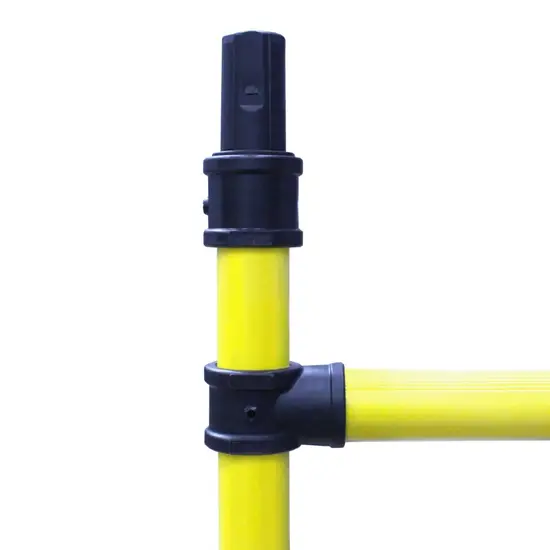

- 2x PROSAFE carbon frame 145-4 (2 meters)
- 2x PROSAFE carbon frame + ladder 145-4 (2 meters)
- 1x PROSAFE carbon frame 145-2 (1 meter)
- 1x PROSAFE carbon frame + ladder 145-2 (1 meter)
- 1x PROSAFE carbon/wood platform without hatch 200

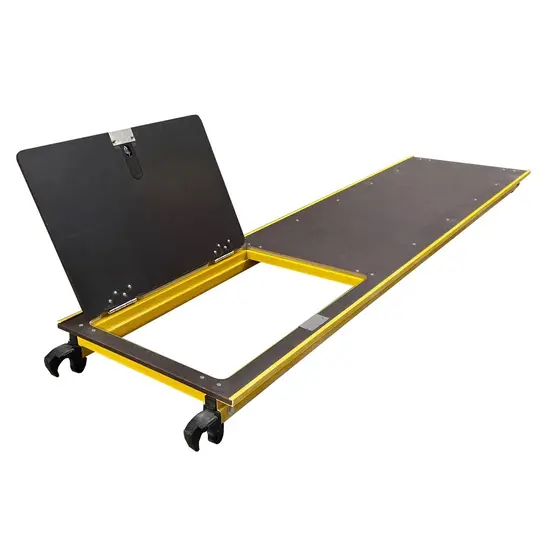

- 2x PROSAFE carbon/wood platform with hatch 200
- 10x PROSAFE carbon horizontal brace 200
- 8x PROSAFE carbon diagonal brace 200
- 4x PROSAFE carbon adjustable stabilizer 150-230

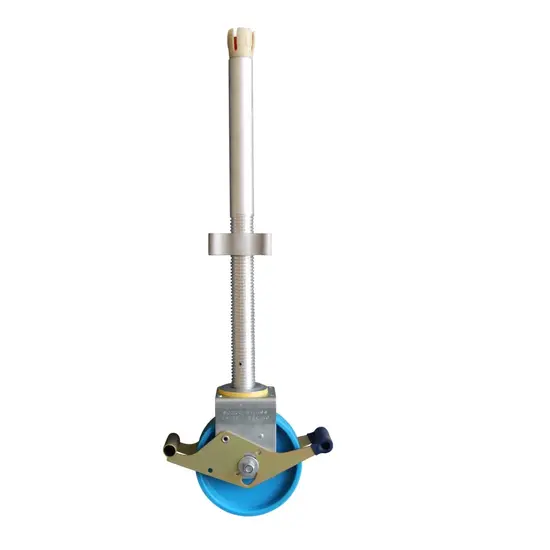

- 4x Scaffolding wheel 200 mm with aluminium spindle nylon (height adjustable)
- 1x Scaffolding toeboards wood
* The number of parts in the photos may vary. The parts list above applies.
Do you need a different working height? Contact our customer service, we will make you an offer. The Fibreglass mobile scaffolding are currently only available on order, delivery time +/- 2 weeks.
Contact our customer service
Article number: | ID10020807 |
Sizes scaffold Length x Width x Heigth (m): | 2.00 x 1.45 x 5.20 m |
Maximum working height (m): | 6.20 m |
Maximum platform height (m): | 4.20 m |
Weight (kg): | |
Maximum load platform (kg): | 226 kg |
Maximum load scaffold (kg): | 725 kg |
Wheels: | 200 mm / Nylon / Height adjustable |
Type user: | Professional |
Scaffolding class: | Class III (200 kg/m²) |
Norm: | EN 1004 / NEN 2484 / TUV |
Guarantee: | 3 years |
