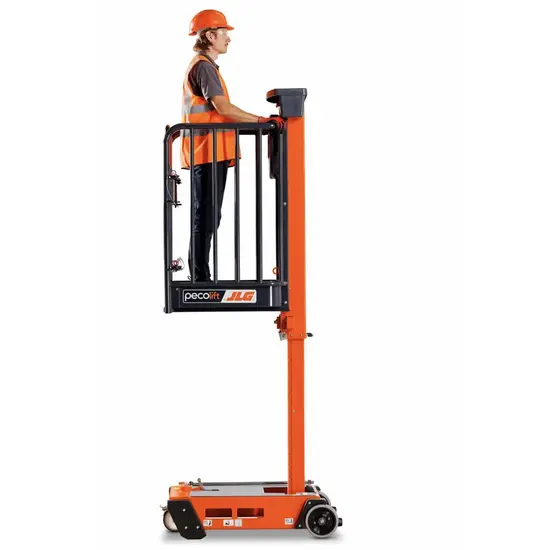

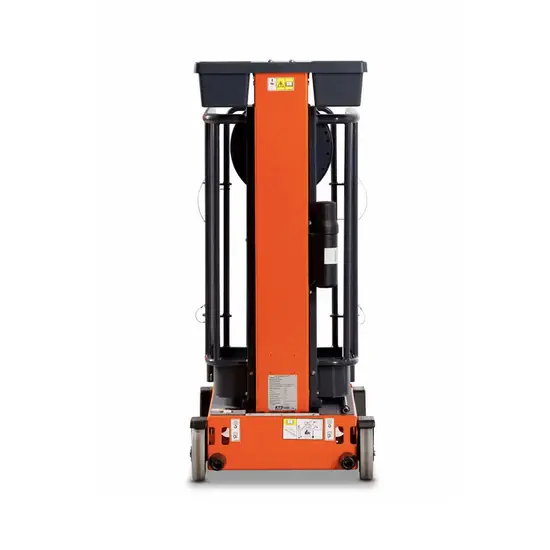

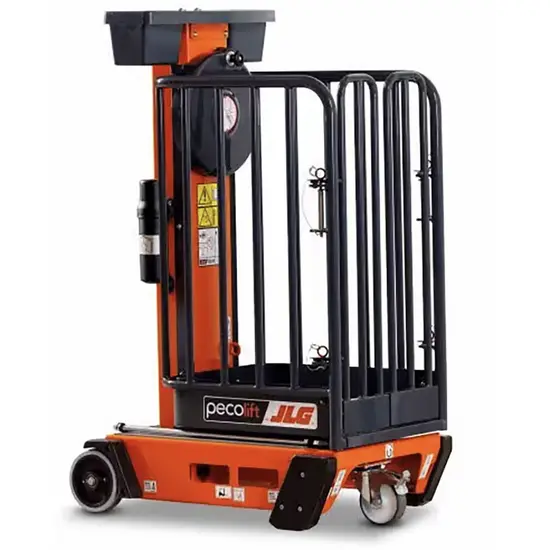

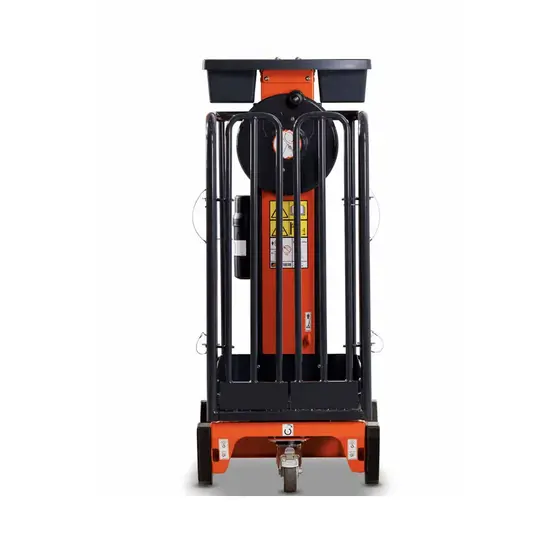

JLG Power Towers Pecolift working height 3.50 m

We call it ‘Non-Powered, Powered Access’

Battery and electric power free, the low-level acces platform PecoLift is elevated by simply and easily rotating the handle; the patented lift mechanism glides you smoothly to your chosen working height in seconds.

With no batteries (to charge and look after) and no hydraulic oil the PecoLift is truly an Eco friendly solution. It’s tiny footprint and simplicity of use finally provides a purely mechanical solution that doesn’t involve erecting, unfolding or climbing.

Key Features

• Intuitive to operate - turn handle to elevate
• Patented lift mechanism, no power required
• Lightweight, easy to manoeuvre
• Small foot print (0.99 m x 0.70 m)
• Unlimited lift cycles, can be used 24/7
• Robust design for years of trouble free service
• Minimal operational costs, virtually maintenance free
• Warranty: 1 year

Specifications:

WORKING DIMENSIONS:

• Maximum working height: 3.50 m
• Maximum platform height: 1.50 m
• Basket dimensions: 0.72 m (length) x 0.60 m (width)
• Working foot print: 0.99 m x 0.70 m
• Safe working load - platform: 150 kg (1 person + tools)
• Maximum manual force: 200 N
• Maximum gradient for operation: 0.5 degrees
• Maximum wind force: Internal use only 0 m/s
• Maximum castor point load: 125 kg (1.23kN)
• Maximum wheel force: 125 kg
• Power Sound Level: less then 70 dBa

CLOSED DIMENSIONS:

• Length: 0.99 m
• Width: 0.70 m
• Height: 1.55 m
• Weight: 196 kg

Liftcycles: Unlimited

Safety features:

• ‘‘Auto-lok’ brake on elevation
• Elevates only when operated
• Lifting mechanism interlocked
