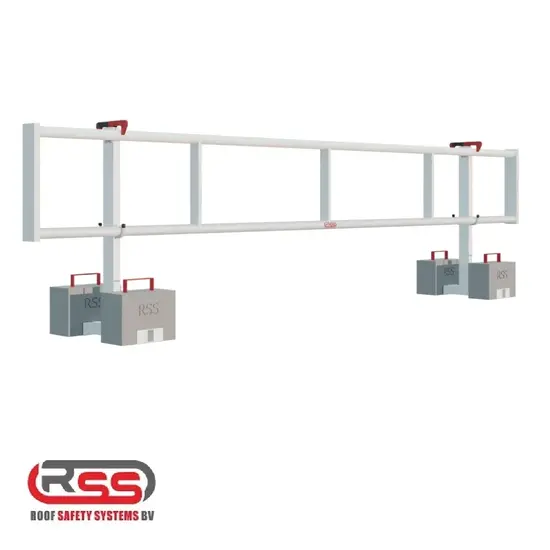

RSS edge protection Compact length 16 meters for flat roofs.
Parts list:
- 5x RSS fall protection flat roof Compact stanchion
- 4x RSS fall protection flat roof fence 4 m
- 10x RSS fall protection flat roof concrete block
* The number of parts in the photos may differ. The above parts list applies.
RSS flat roof Compact system
The RSS flat roof Compact system (60 cm) is a recently developed collective flat roof edge protection system, which distinguishes itself by efficiency, user-friendliness and competitive pricing.

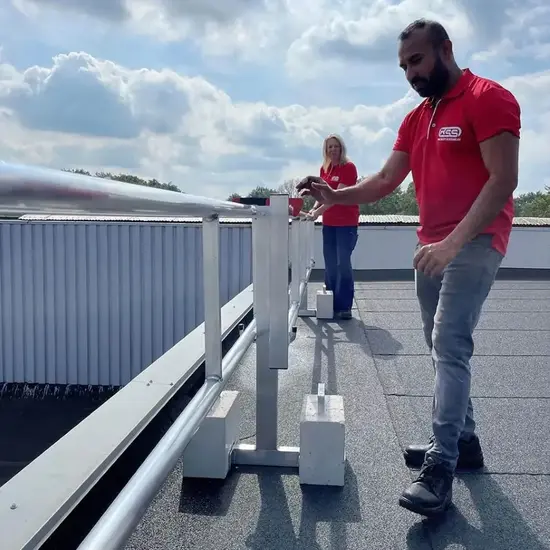

The new RSS system is easy to assemble by one individual and takes up little space on the roof because the upright (stanchion) is only 60 cm long. In addition, the Compact system consists of only three parts, making it easy and quick to assemble.

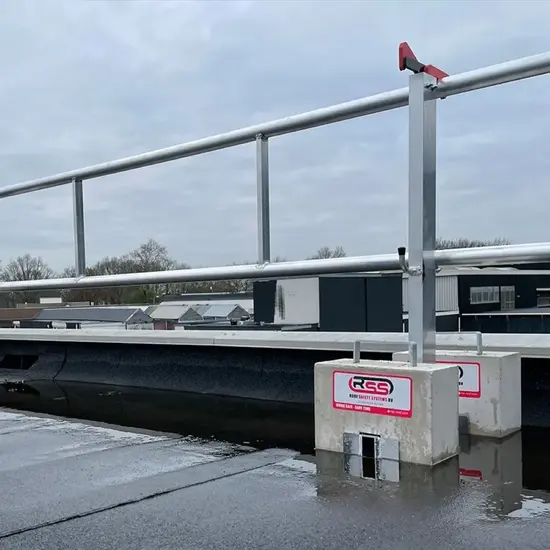

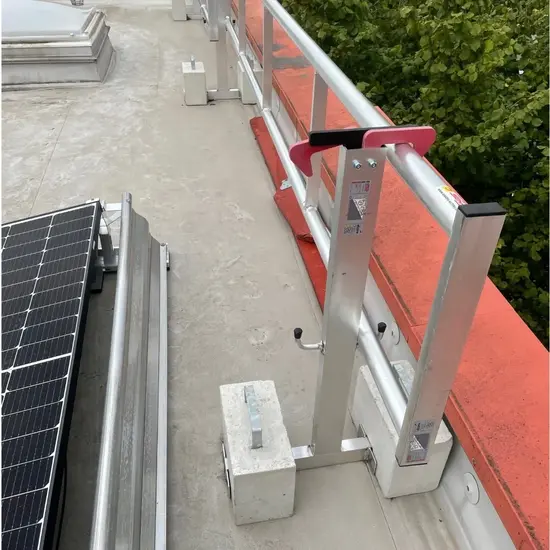

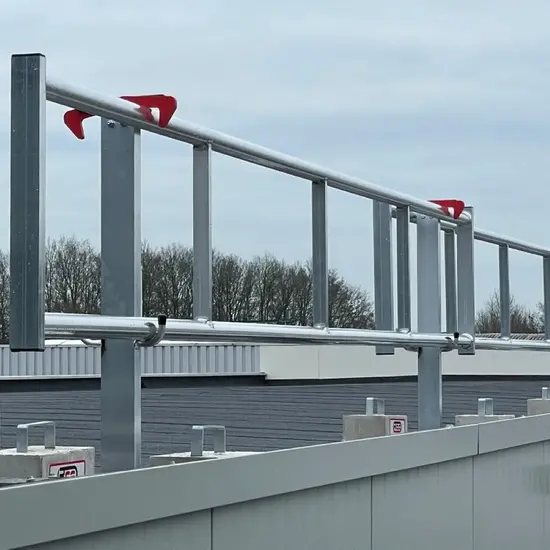

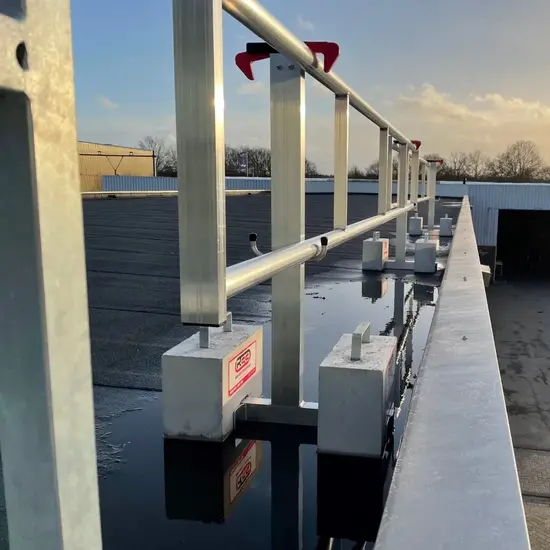

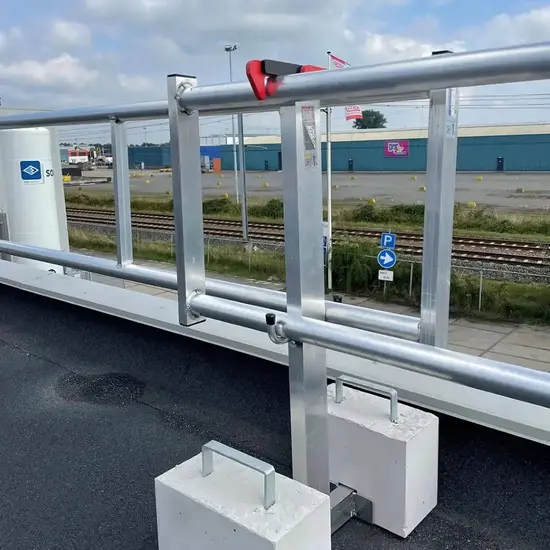

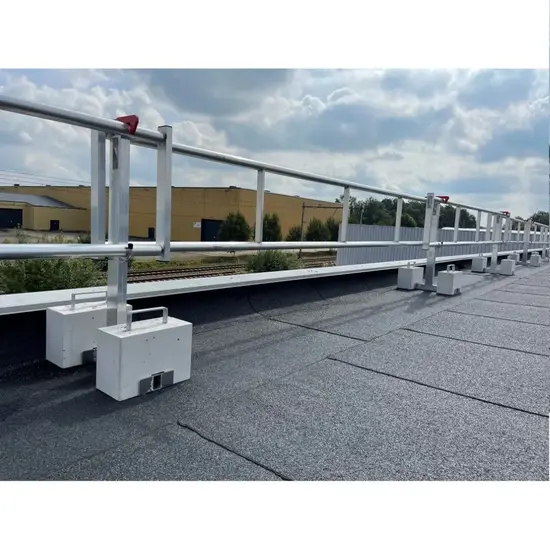

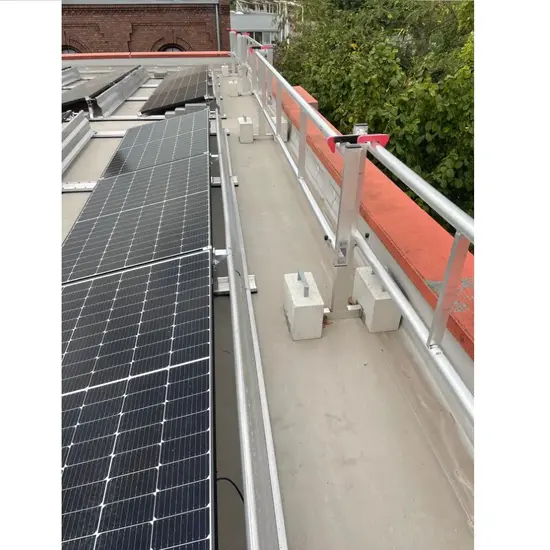

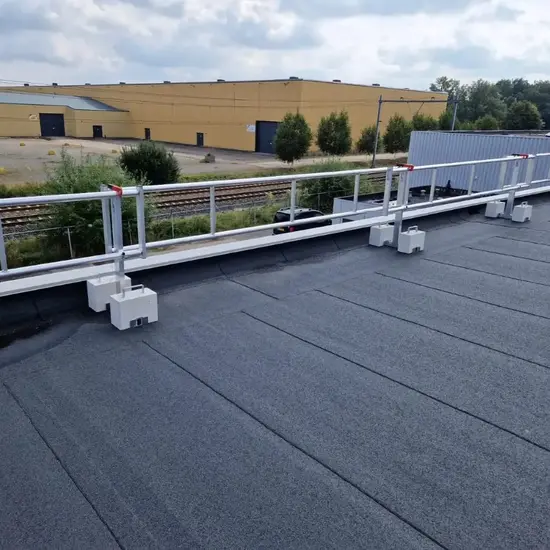

The upright is held in place by placing a counterweight on either side. Next, the fencing is hung in the upright and secured by the clamping hooks.
The free-standing roof edge fall protection is also available in combination with a top-notch transport frame suitable for up to 40 metres. This simplifies storage and transport of the Compact system.
The new RSS Compact system is also compatible with the old RSS flat roof system. Therefore, you can easily use both systems, and link them together.
The eaves must have a minimum height of 15 cm. If the roof edge is lower than 15 cm, the RSS flat roof toe board must be mounted. The gap between the work surface and the toe board may not exceed 2 cm!
Each fence must have at least 2 uprights as support. The stanchions may not exceed 3 meters apart with a 4 meter fence!
The RSS roof edge protection complies with the highest European safety standards (EN 13374 - Class A), with the lifting standard (25 kg), certified by ABOMA.
View the RSS roof edge protection flat roof Compact manual here
Contact our customer service
| Article number: | 43831600 |
