RSS sloping roof 30 meters + transport rack

RSS fall protection on flat and sloping roofs length 30 meters + transport rack.

Parts list:

• 11x RSS fall protection stanchion
• 10x RSS fall protection fence 3 m
• 10x RSS fall protection toeboard 3 m
• 10x RSS fall protection hooking bar
• 1x   RSS transport rack

* The number of parts in the photos may differ. The above parts list applies.

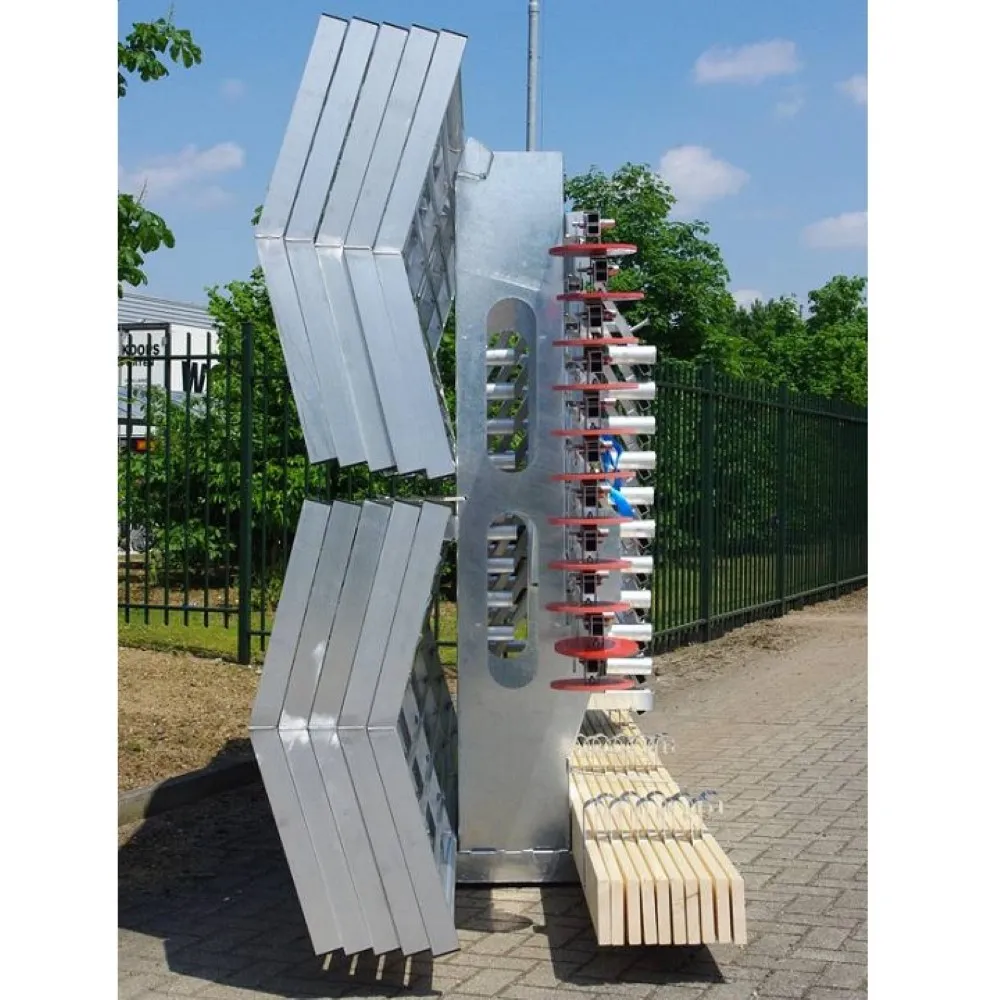

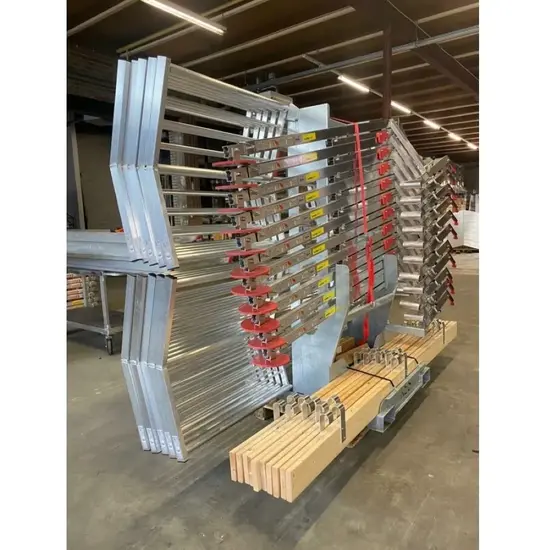

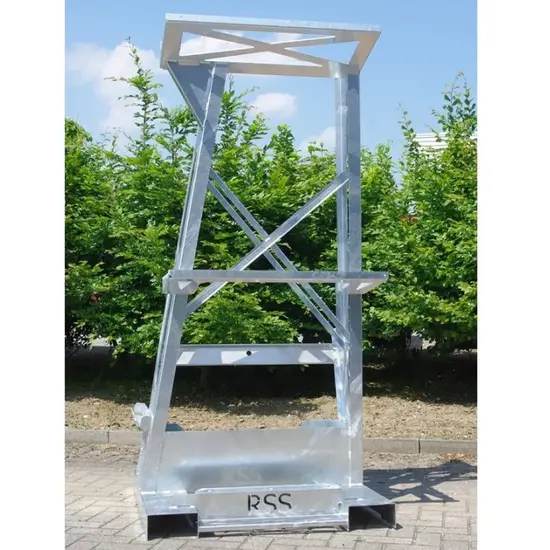

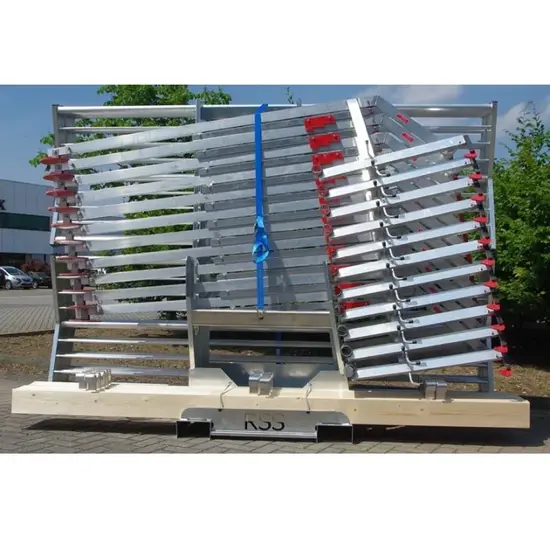

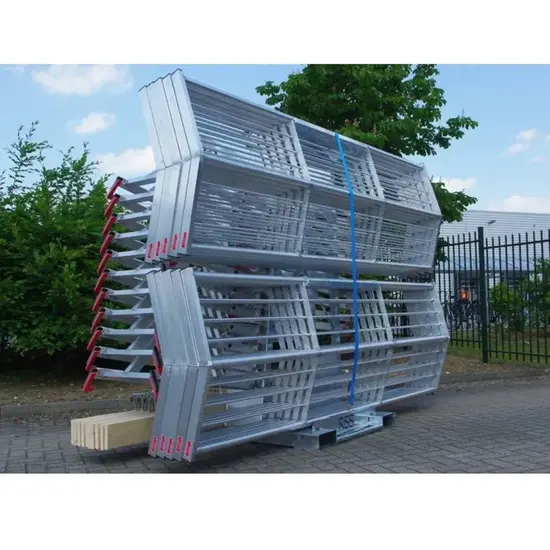

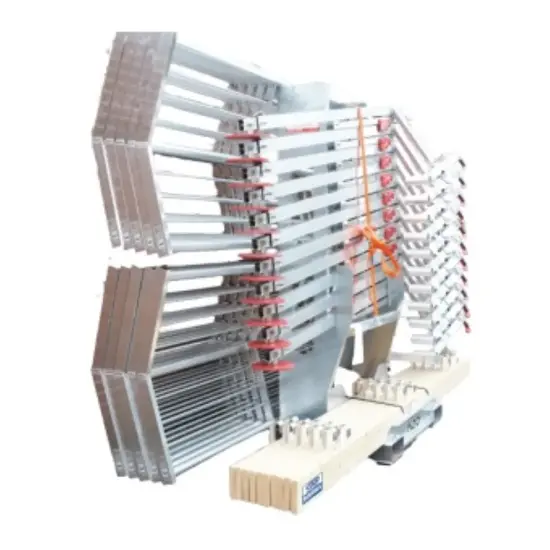

RSS transport & storage frame

The RSS transport and storage frame makes it easy, efficient and safe to transport and store the fall prorection system for sloping roofs. The frame offers space for 30 linear meters of fall protection.

Transport and storage frame features:

• Dimensions loaded transport and storage frame: 2.1 m (Height) x 3.0 m (Width) x 1.0 m (Depth)
• Net weight of transport and storage frame: 105 Kg

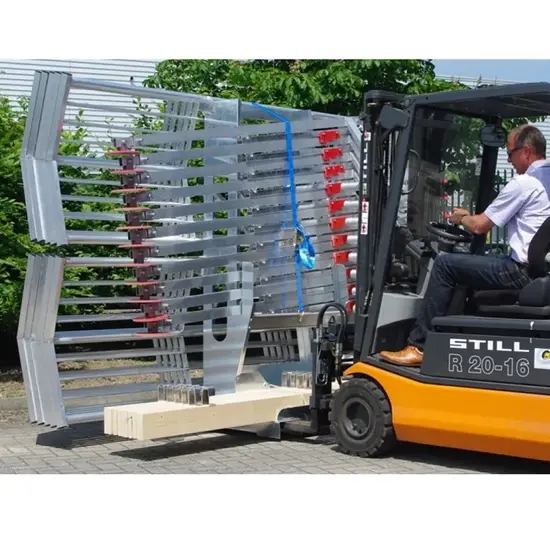

• Special opening for forklift.
• Easy to place and transport on a trailer.

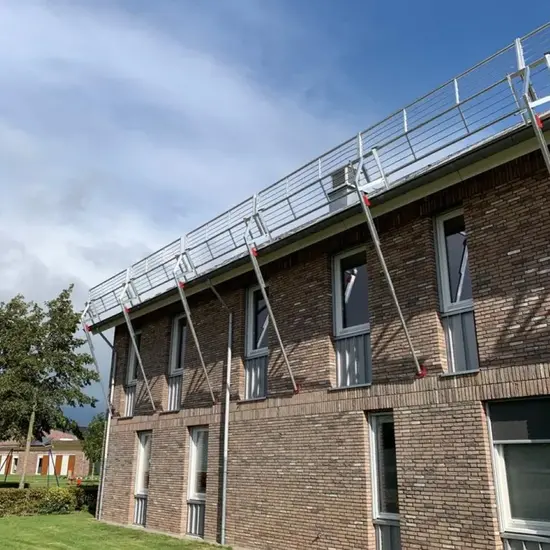

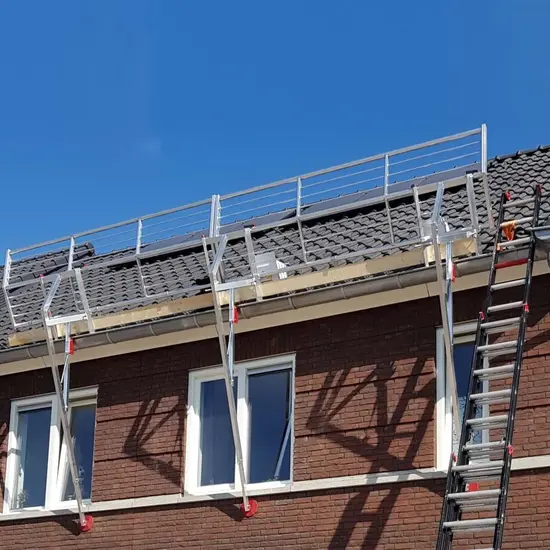

RSS Roof Safety Systems fall protection for pitched roofs

RSS is a collective fall protection system for both flat and pitched roofs (suitable for roofs with a roof pitch from 0 to 60°). The lightweight aluminum fencing can be hooked to the roof edge and is supported by a post against the facade. The RSS fall protection system does not damage the facade and does not rest on the ground.

Characteristics:

• For pitched roofs with a roof pitch of up to 60°.
• The RSS fall protection pitched roof can be used in many situations: roof edge protection for pitched roofs, but can also be used as roof edge protection for a flat roof!
• Even suitable for a roof edge with an overhang of up to 1 metre.
• Wide and narrow eaves, mast gutters (semi-round gutters) and gutters.
• Can even be used with obstacles on the ground or in the facade.
• Very quick and easy to (dis)assemble.
• Made of high quality aluminum, very light.
• Post adjustable in height, rests against the facade.
• Reversible fence.
• Good stackable and therefore easy to transport.
• The weight of the system (stanchion, fence, toe board and hook bracket) is 9.4 Kg per linear metre.

RSS roof edge protection stands for safety. For example, all systems comply with the lifting standard (25 Kg) and are certified by Aboma.

Recently RSS for pitched roofs has achieved the safety standard according to EN 13374 class C. This is the highest standard in Europe for fall protection systems.

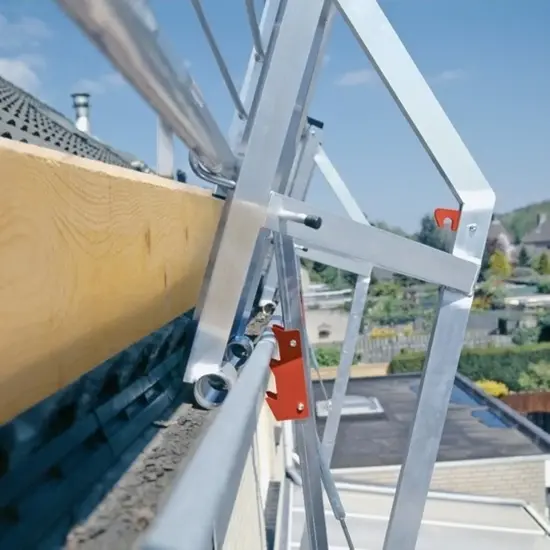

How does the RSS System work?

The system is mounted in the gutter in three simple steps:

1. Every 3 meters a post is placed in the gutter and fixed. For this, a gas spring is integrated in the stanchion.
2. Then the handrail is clicked into the stanchion.
3. Then the toe board is hung under the railing and everything is ready for use.

In the event of a fall, force is generated on the fence. This force is absorbed by the stanchion, which is supported against the facade. In addition, the system is connected to the roof construction at a roof pitch of 30°. The load on the gutter is minimal!

View the RSS fall protection slooping roof manual here
