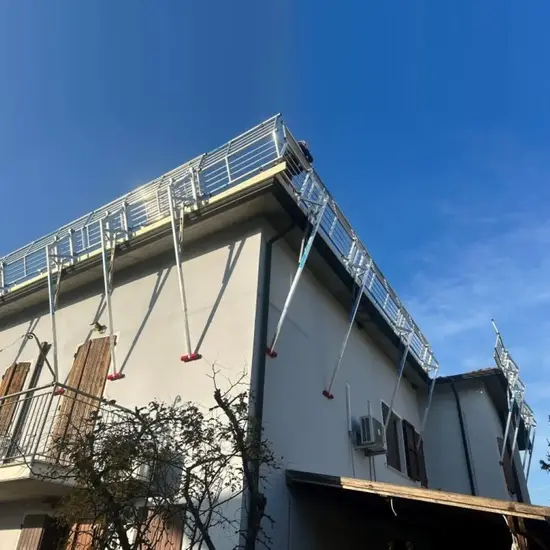

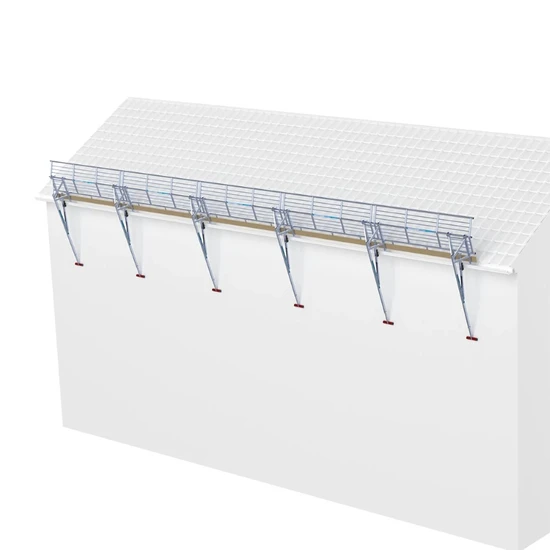

SGS Edge fall protection sloping roof 15 meters

SGS Edge protection sloping roof length 15 meters.

Parts list:

• 6x SGS roof edge protection upright
• 5x SGS roof edge protection railing frame 3 m
• 5x SGS roof edge protection wooden edge board 3 m
• 5x SGS roof edge protection hook bracket

* The number of parts in the pictures may vary. The parts list above applies.

Features SGS Edge protection sloping roof:

• For pitched roofs with a roof pitch up to 60°.
• Applicable with obstacles on the ground or in the facade.
• Very quick and easy to assemble and disassemble.
• Made of high-quality aluminum, very light.
• Upright adjustable in height, supports against the facade.
• Reversible railing frame.
• Well stackable and easy to transport.

Safety Guard Systems Edge fall protection for pitched roofs

The SGS roof edge protection is the new fall protection system for a sloping roof. The SGS roof edge protection has the highest possible qualification EN 13374 class C and TÜV NORD 2400-A-480. As a result, this fall protection system may be used on sloping roofs with a slope up to 60 degrees.

The SGS roof edge protection consists of the following components:

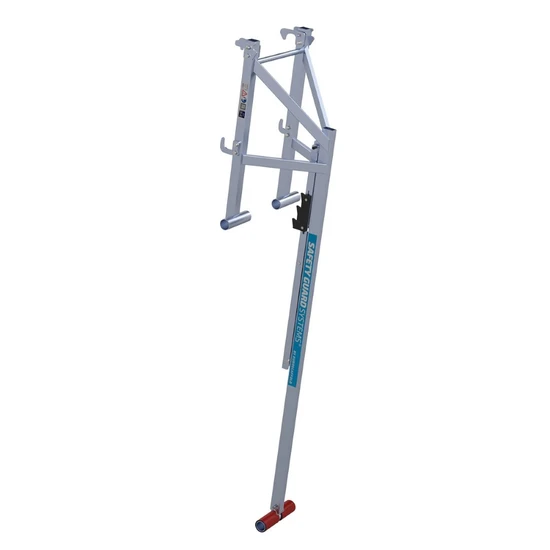

1. Upright: The roof edge protection is supported by sturdy uprights placed at regular intervals along the roof edge. These uprights provide stability and strength to the system.

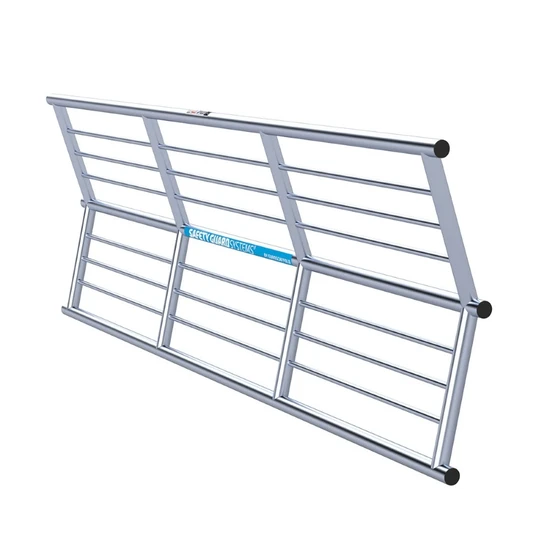

2. Railing frame: Horizontal handrails are attached to the uprights. The railing height is approximately one meter. This railing prevents persons from falling over the roof edge.

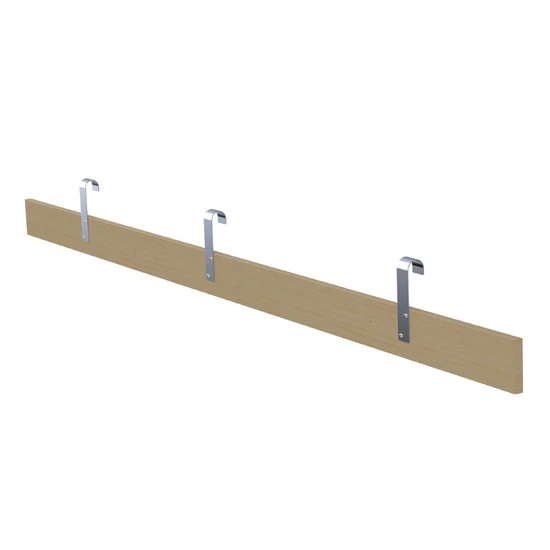

3. Edge board: A wooden edge board is installed at the bottom of the railing. This board seals the gap between the gutter and the railing. It also prevents materials or tools from falling off the roof.

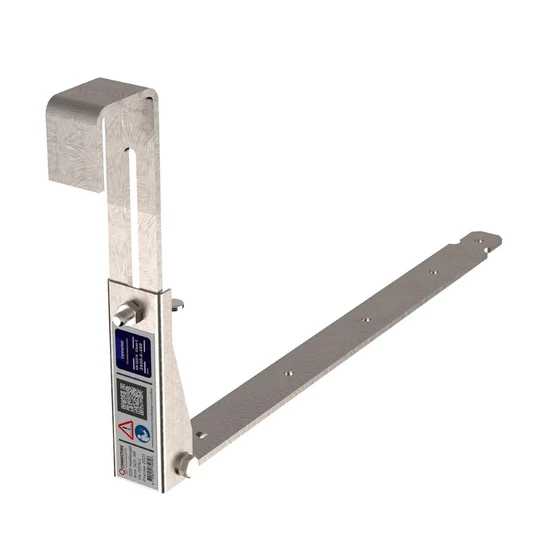

4. Hook Bracket: The hook bracket allows you to securely attach the system to the roof. The hook brackets provide a safe and stable anchorage of the roof edge protection.

When using professional roof edge protection systems, it is important to ensure proper installation according to the manufacturer's instructions. Check the SGS roof edge protection sloping roof manual here.
